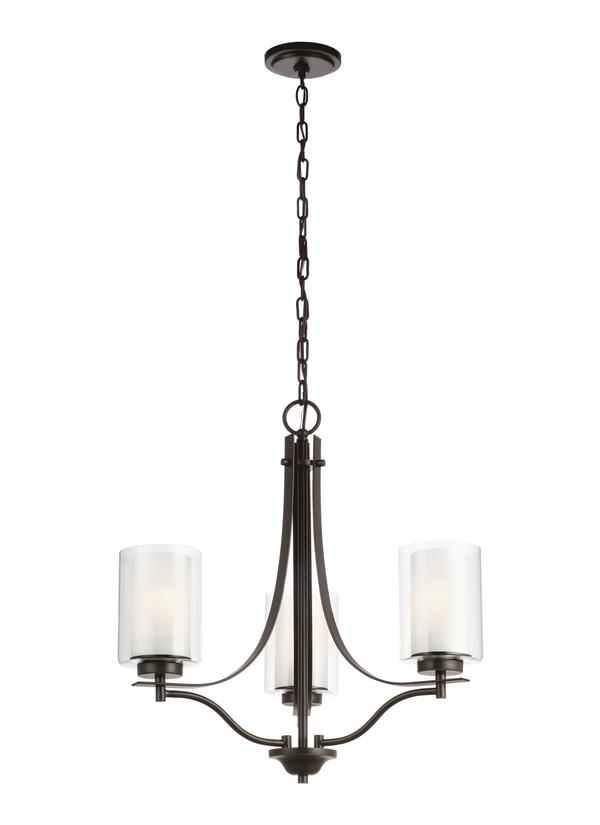

3137303EN3-782: Three Light Chandelier


Collection:  Elmwood Park

Featured in the decorative Elmwood Park collection

3 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Satin Etched glass shades and Clear glass shades

ENERGY STAR® Qualified

UPC #:785652071577

Finish:   Heirloom Bronze (782)
Dimensions:

Diameter: 20 1/2''
Height: 21''
Weight: 8.4 lbs.
Overall Height: 94 3/4''
Wire: 72'' (color/Brown)
Chain: 36''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulbs:
  3 - LED Medium A19 9w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Heirloom Bronze
1 Chain - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH313730_-EWP)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 3       5 1/2 3 1/8
Shade Glass Clear 3       5 7/8 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3113704-778 1  785652071577  22.5 22.25 12.5 3.621 10.7 250 Yes
NJ Pallet   30    48 40 68 75.556 321 No
NV Pallet   30    48 40 68 75.556 321 No
