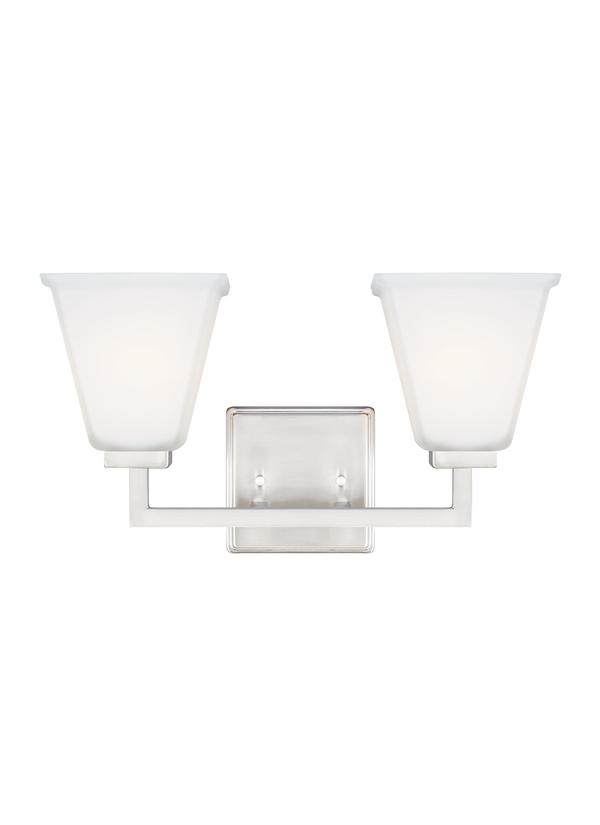

4413702-962: Two Light Bath


Collection:  Ellis Harper

Featured in the decorative Ellis Harper collection

2 A19 Medium 75 watt light bulbs

Etched / white inside glass shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652069673

Finish:   Brushed Nickel (962)
Dimensions:

Width: 16 1/8''
Height: 9 1/8''
Weight: 4.66 lbs.
Extends: 6 5/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4413702 4413703 4413704)
Trilingual (English, Spanish, and French) (4413702 4413703 4413704)
Trilingual (English, Spanish, and French) (990W4_1370_-ELH)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 2   5 3/4 5 3/4 5 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  5  1    6 5/8  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4113701-778 1  785652069673  15.18 12.38 9.38 1.02 6.1 0 Yes
Master Pack 4413702-962 0  10785652069670
NJ Pallet   72    48 40 77 85.556 439 No
NV Pallet   72    48 40 77 85.556 439 No
