Job Name:
Job Type:
Comments:
Quantity:
** By typing in the gray boxes above you can populate this form before printing.
** To save this document click on the logo above. A pdf document of this Specification Sheet will be created that can be saved locally.

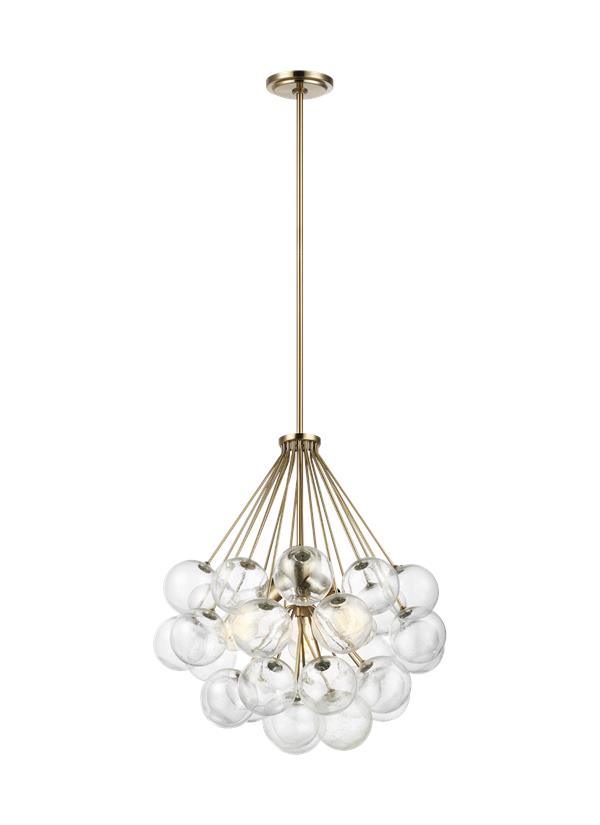

6514303-848: Three Light Pendant



Collection:  Bronzeville


Featured in the decorative Bronzeville collection

3 A19 Medium 60 watt light bulbs

Clear seeded glass shades

Sloped ceiling mounting hardware included

Meets Title 24 energy efficiency standards

UPC #:785652069529

Finish:   Satin Brass (848)

Dimensions:

Diameter: 21 3/4''
Height: 22 1/2''
Weight: 19.2 lbs.
Overall Height: 67''
Wire: 72'' (color/Clear Silver)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  3 - Medium ST19 60w Max. 120v - Not included
0 - Medium A19 60w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Vintage lamp(s) recommended for aesthetics
Material List:
1 Body - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (6514303)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear Seeded 30 G560324-848     4 1/8 3 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6514301-962 785652069529  30 20 24.75 8.594 23.1 0 Yes
Master Pack 6514303-848 10785652069526
NJ Pallet     48 40 74.5 82.778 161 No
NV Pallet     48 40 74.5 82.778 161 No
