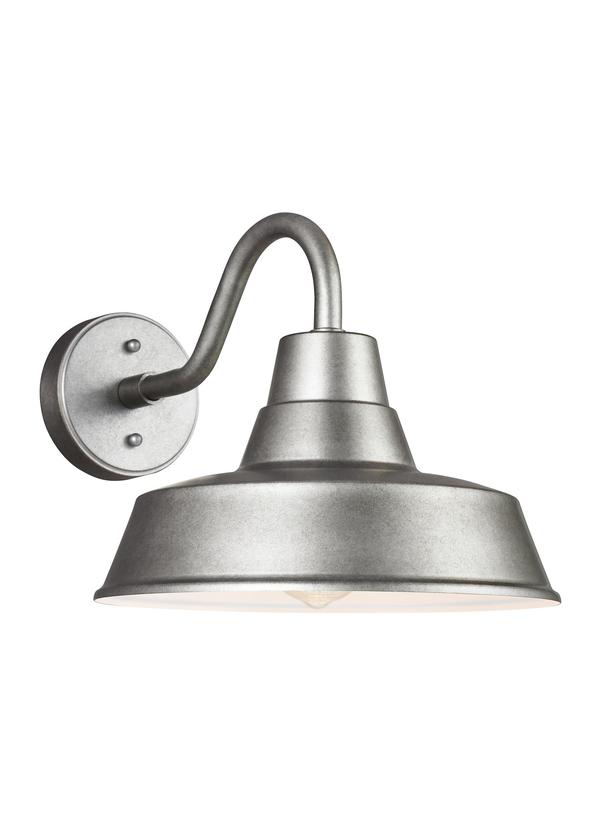

8637401-57: Medium One Light Outdoor Wall Lantern

	Collection: Barn Light
	Featured in the decorative Barn Light collection
	1 A19 Medium 75 watt light bulb
	Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652069369
	Finish: Weathered Pewter (57)

Dimensions:


Diameter:	12''
Width:	12''
Height:	10 5/8''

Weight:

1.8 lbs.

Extends:

17 1/8''

Extends Max:

23 1/8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 75w Max. 120v - Not included

Features:

Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Weathered Pewter

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (8537401 8637401 8737401 8837401)
Trilingual (English, Spanish, and French) (8537401 8637401 8737401 8837401)
Trilingual (English, Spanish, and French) (990W8_37401-BRL)

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate			1 1/4	5	4 1/8	6 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8537401EN3-12	1	785652069369	16.75	14.75	13.25	1.894	3.9	0	Yes
Master Pack	8637401-57	0	10785652069366
NJ Pallet		45		48	40	77	85.556	175		No
NV Pallet		45		48	40	77	85.556	175		No
