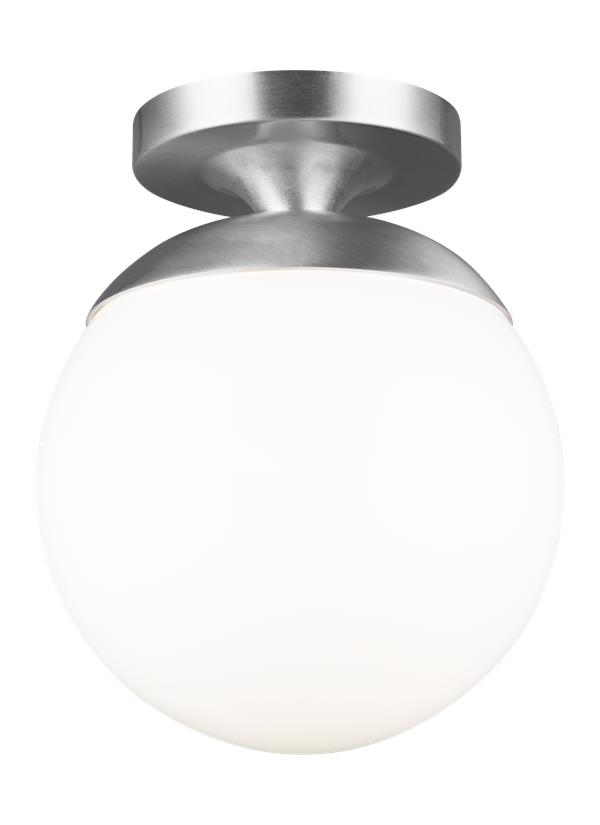

7518EN3-04: One Light Wall / Ceiling Semi-Flush Mount with White Glass


Collection:  Leo - Hanging Globe

Wall / Ceiling Single Light Satin Aluminum with Opal Glass.

Versatile Lighting expressions using Wall / Ceiling Light. Decorate with one light fixture finished in Satin Aluminum with Opal Opaque glass.

Featured in the decorative Leo - Hanging Globe collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

smooth white glass diffuser

ENERGY STAR® Qualified

UPC #:785652068331

Finish:   Satin Aluminum (04)
Dimensions:

Diameter: 8''
Height: 9 5/8''
Weight: 2.1 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Fixture may be mounted on wall or ceiling.
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (7518 7501801)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Smooth White 1       7 1/4 8 3 13/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/2      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7518EN3-04 1  785652068331  13.13 9.5 9.5 0.686 2.6 0 Yes
Master Pack 7518EN3-04 0  10785652068338
NJ Pallet   105    48 40 71 78.889 273 No
NV Pallet   105    48 40 71 78.889 273 No
