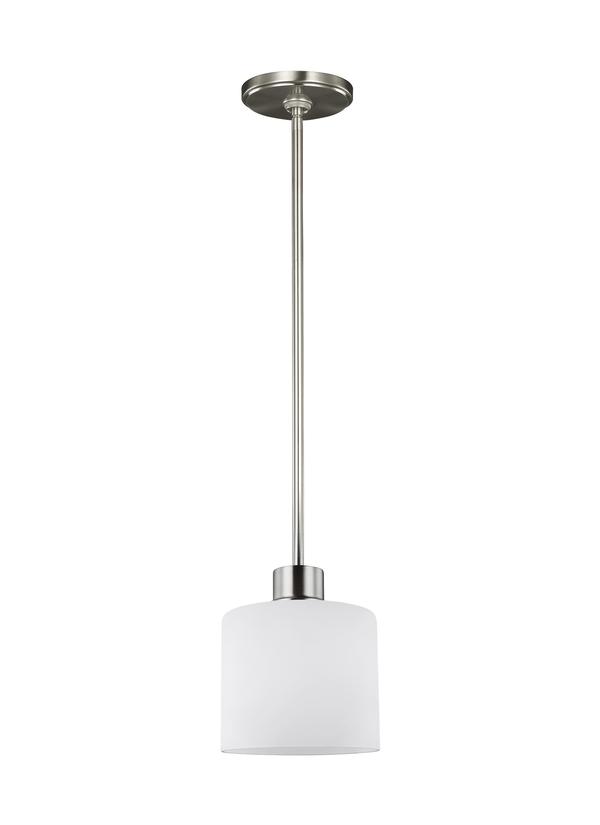

6128801EN3-962: One Light Mini-Pendant

	Collection: Canfield
	Featured in the decorative Canfield collection
	1 A19 Medium 9 watt light bulb
	Fixture is supplied with 1 light bulb
	Etched / white inside glass shade
	ENERGY STAR® Qualified
	UPC #:785652060458
	Finish: Brushed Nickel (962)

Dimensions:


Diameter:	5 1/2''
Height:	6 3/8''

Weight:

2.4 lbs.

Overall Height:

52 3/8''

Wire:

120'' (color/Clear Silver)

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Sloped ceiling mounting hardware included
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Brushed Nickel

1 6" Stem - Steel - Brushed Nickel

3 12" Stem - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (6128801 6528801)
Trilingual (English, Spanish, and French) (990P6128801-6528801-CAN)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched / White Inside

G560290-303

4 3/4

5 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3/4			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6128801EN3-962	1	785652060458	15	9	8.5	0.664	3.2	0	Yes
Master Pack	6128801EN3-962	0	10785652060455
NJ Pallet		112		48	40	75	83.333	358		No
NV Pallet		112		48	40	75	83.333	358		No
