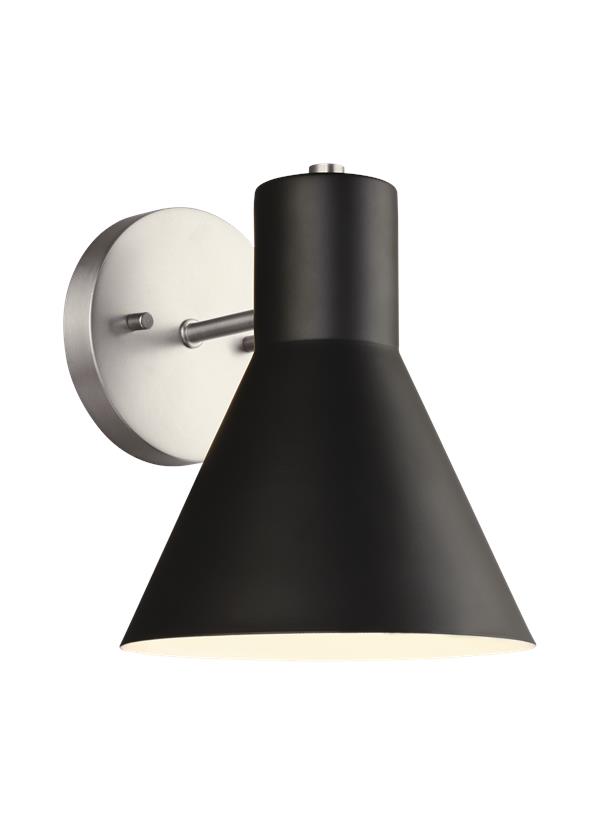

4141301EN3-962: One Light Wall / Bath Sconce



Collection:  Towner


Supplied with 6.5-inches of wire

An ENERGY STARĀ® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort

To achieve the most flattering mirror light, choose LED bulbs with a Color Rendering Index of 90, and a warm color maximum temperature of 3500K

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652059414

Finish:   Brushed Nickel (962)

Dimensions:

Width: 7''
Height: 8 3/8''
Weight: 1.39 lbs.
Extends: 8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4141301 4441302 4441303 4441304)
Trilingual (English, Spanish, and French) (4141301 4441302 4441303 4441304)
Trilingual (English, Spanish, and French) (990W4141301-TOW)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Steel Black 1       8 7
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     3/4  4 3/4  2 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4141301EN3-962 785652059414  10.5 9.25 9 0.506 2.3 0 Yes
Master Pack 4141301EN3-962 10785652059411
NJ Pallet   128    48 40 73 81.111 294.4 No
NV Pallet   128    48 40 73 81.111 294.4 No
