Job Name:
 Job Type:
Comments:
 Quantity:
** By typing in the gray boxes above you can populate this form before printing.
** To save this document click on the logo above. A pdf document of this Specification Sheet will be created that can be saved locally.

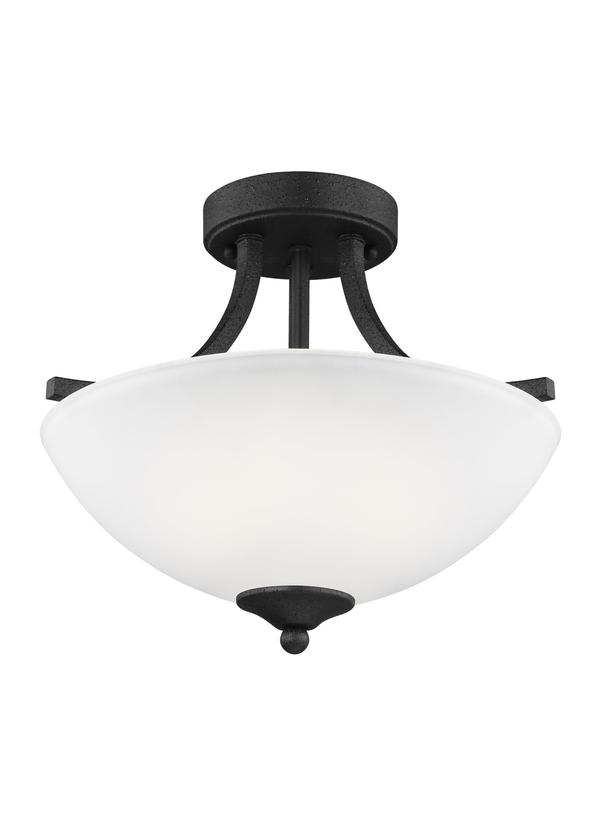

7716502EN3-839: Small Two Light Semi-Flush Convertible Pendant


Collection:  Geary

Supplied with pre-laced, adjustable 6-feet of wire and 3-feet of chain for preferred length

Dual mounted fixture that can be installed semi-flush or as a pendant for a customized look

An ENERGY STAR® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652060670

Finish:   Blacksmith (839)
Dimensions:

Diameter: 13 7/8''
Height: 12 3/8''
Weight: 5.2 lbs.
Height Flush: 11 3/8''
Overall Height: 50 1/4''
Wire: 72'' (color/Black)
Chain: 36''
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Blacksmith
1 Chain - Steel - Blacksmith
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C771650_-GRY)
Trilingual (English, Spanish, and French) (7716502 7716503 7716504)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1 G560318-619     4 1/4 13
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 7/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7716502EN3-839 1  785652060670  16 16 11 1.63 7 175 Yes
NJ Pallet   40    48 40 67.5 75 280 No
NV Pallet   40    48 40 67.5 75 280 No
