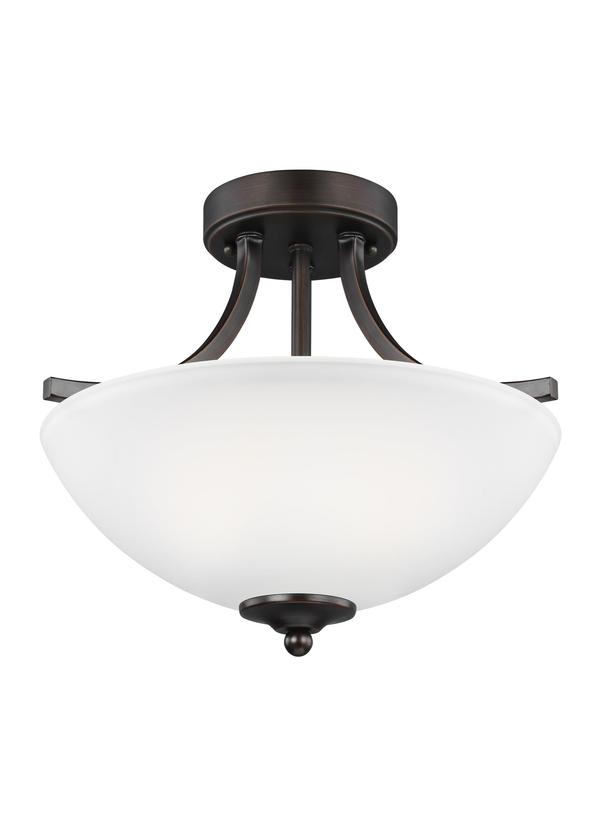

7716502-710: Small Two Light Semi-Flush Convertible Pendant


Collection:  Geary

Supplied with pre-laced, adjustable 6-feet of wire and 3-feet of chain for preferred length

Dual mounted fixture that can be installed semi-flush or as a pendant for a customized look

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652001499

Finish:   Bronze (710)
Dimensions:

Diameter: 13 7/8''
Height: 12 3/8''
Weight: 5.2 lbs.
Height Flush: 11 3/8''
Overall Height: 50 1/4''
Wire: 72'' (color/Brown)
Chain: 36''
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 100w Max. 120v - Not included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Bronze
1 Chain - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (7716502 7716503 7716504)
Trilingual (English, Spanish, and French) (990C771650_-GRY)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1 G560318-619     4 1/4 13
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7716502-710 1  785652001499  16 15.75 11 1.604 7.1 0 Yes
Master Pack 7716502-710 0  10785652001496
NJ Pallet   40    48 40 77 85.556 284 No
NV Pallet   32    48 40 65 72.222 227.2 No
