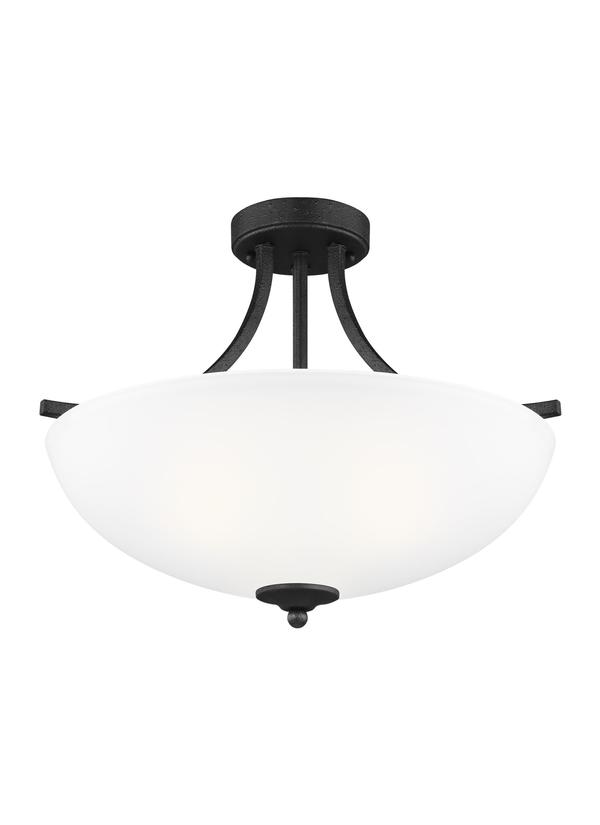

7716503-839: Medium Three Light Semi-Flush Convertible Pendant


Collection:  Geary

Featured in the decorative Geary collection

3 A19 Medium 100 watt light bulbs

Satin Etched glass shade

Fixture is dual mount and may be installed semi-flush or as a pendant.

Easily converts to LED with optional replacement lamps

UPC #:785652001093

Finish:   Blacksmith (839)
Dimensions:

Diameter: 18 5/8''
Height: 16 3/8''
Weight: 8 lbs.
Height Flush: 14 7/8''
Overall Height: 54 1/4''
Wire: 72'' (color/Black)
Chain: 36''
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 100w Max. 120v - Not included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Blacksmith
1 Chain - Steel - Blacksmith
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C771650_-GRY)
Trilingual (English, Spanish, and French) (7716502 7716503 7716504)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1 G560319-619     5 1/4 17 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7716503-839 1  785652001093  21.25 21 12.5 3.228 11 250 Yes
NJ Pallet   18    48 40 68.25 75.833 198 No
NV Pallet   18    48 40 68.25 75.833 198 No
