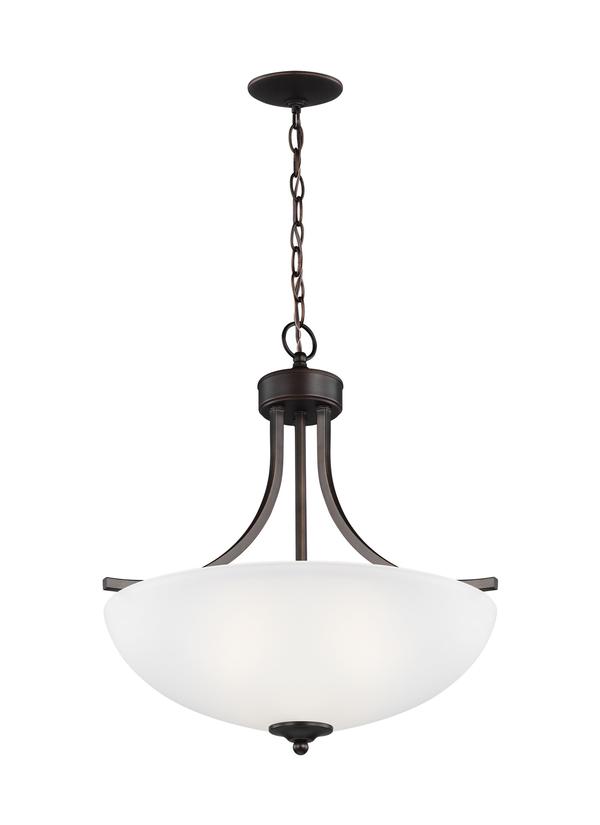

6616503EN3-710: Medium Three Light Pendant

	Collection: Geary
	Featured in the decorative Geary collection
	3 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Satin Etched glass shade
	ENERGY STAR® Qualified
	UPC #:785652060571
	Finish: Bronze (710)

Dimensions:


Diameter:	18 5/8''
Height:	20 5/8''

Weight:

8.6 lbs.

Overall Height:

94 5/8''

Wire:

120'' (color/Brown)

Chain:

72''

Mounting Proc.:

Screw Collar - Chain

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

3 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Supplied with wire pre-laced through chain

Material List:

1 Body - Steel - Bronze

1 Chain - Steel - Bronze

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (990p661650_-gry)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560319-619

5 1/4

17 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3/4			4 7/8

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6616503EN3-710	1	785652060571	21.25	21	12.5	3.228	11.8	0	Yes
Master Pack	6616503EN3-710	0	10785652060578
NJ Pallet		24		48	40	67.5	75	283.2		No
NV Pallet		24		48	40	67.5	75	283.2		No
