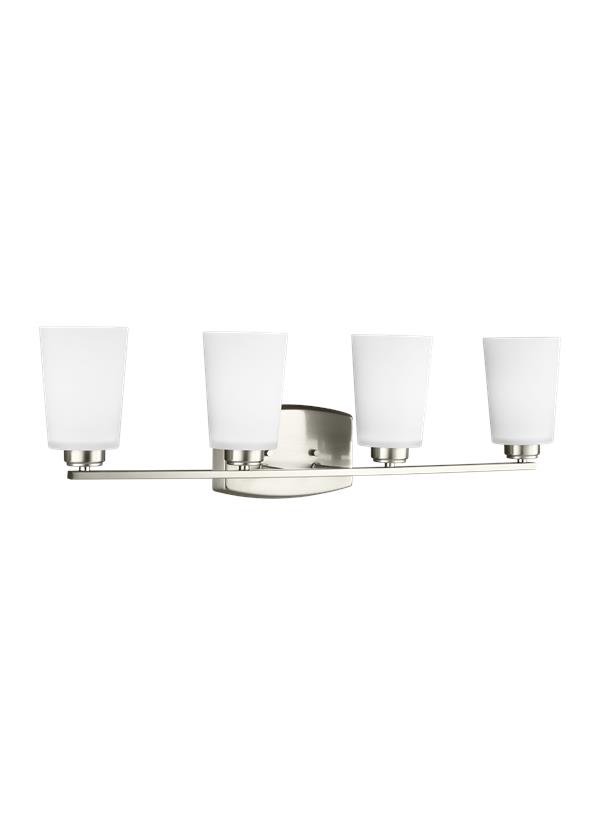

4428904-962: Four Light Wall / Bath


Collection:  Franport

Featured in the decorative Franport collection

4 A19 Medium 100 watt light bulbs

Etched / white inside glass shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652057687

Finish:   Brushed Nickel (962)
Dimensions:

Width: 29 3/8''
Height: 8 1/4''
Weight: 6.93 lbs.
Extends: 6 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  4 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4128901-442890_-FRA)
Trilingual (English, Spanish, and French) (4128901 4428902 4428903 4428904)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 4 G560292-303     5 3/4 4 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  8  1    5 3/4  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4428904-962 1  785652057687  30.5 11.5 7.5 1.522 9.8 0 Yes
Master Pack 4428904-962 0  10785652057684
NJ Pallet   42    48 40 71 78.889 411.6 No
NV Pallet   42    48 40 71 78.889 411.6 No
