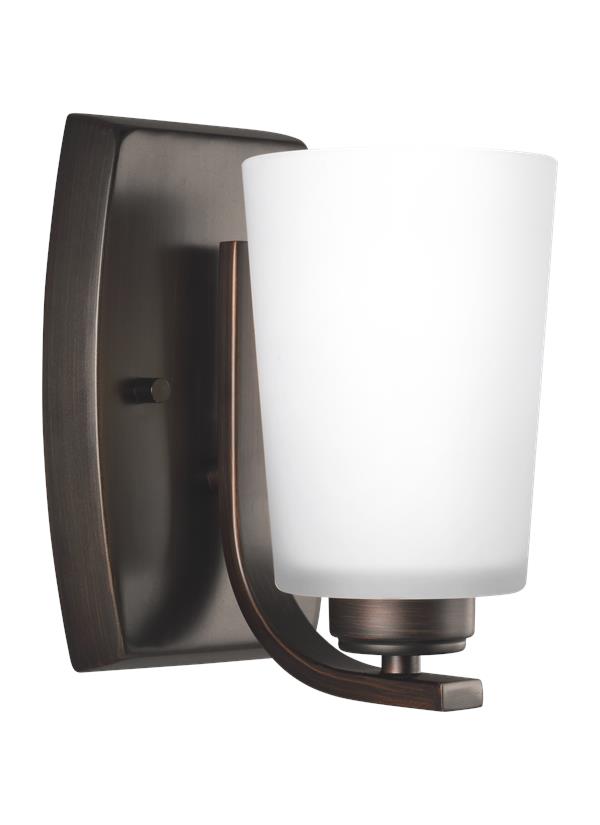

4128901-710: One Light Wall / Bath Sconce


Collection:  Franport

Featured in the decorative Franport collection

1 A19 Medium 100 watt light bulb

Etched / white inside glass shade

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652057618

Finish:   Bronze (710)
Dimensions:

Width: 5''
Height: 8''
Weight: 2.22 lbs.
Extends: 6 7/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4128901-442890_-FRA)
Trilingual (English, Spanish, and French) (4128901 4428902 4428903 4428904)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560292-303     5 3/4 4 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8  5  1    4  4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4128901-710 1  785652057618  10 8.5 6.75 0.332 3 0 Yes
Master Pack   6  10785652057615  21 17.5 10.75 2.286 19.6 0 Yes
NJ Pallet   192    48 40 75 83.333 627.2 No
NV Pallet   192    48 40 75 83.333 627.2 No
