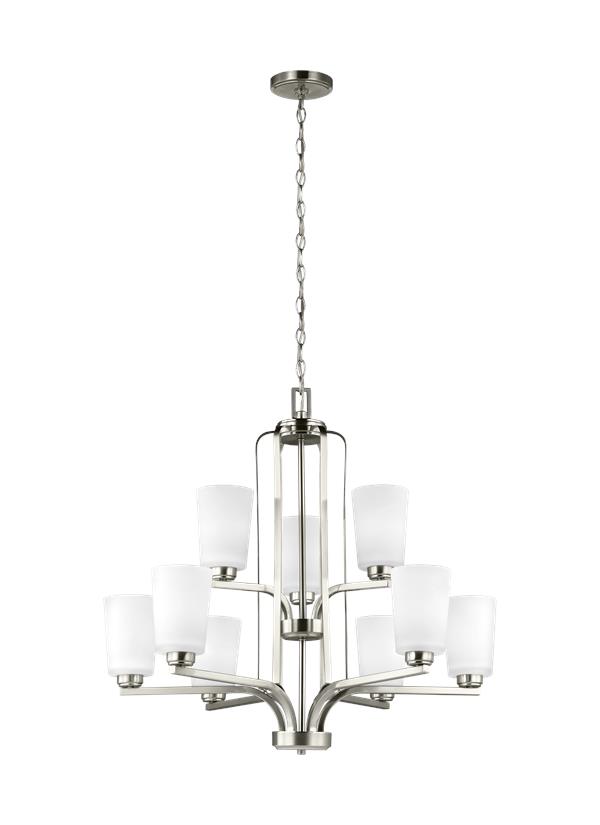

3128909-962: Nine Light Chandelier



Collection:  Franport


Featured in the decorative Franport collection

9 A19 Medium 100 watt light bulbs

Etched / white inside glass shades

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652057588

Finish:   Brushed Nickel (962)

Dimensions:

Diameter: 30''
Height: 27 5/8''
Weight: 20.09 lbs.
Overall Height: 101 7/8''
Wire: 120'' (color/Clear Silver)
Chain: 72''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  9 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH31289_-FRA)
Trilingual (English, Spanish, and French) (3128903 3128905 3128909)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 9 G560292-303     5 3/4 4 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3128909-962 785652057588  31 28.75 12.5 6.447 28.4 0 Yes
Master Pack 3128909-962 10785652057585
NJ Pallet     48 40 73.25 81.389 255.6 No
NV Pallet     48 40 73.25 81.389 255.6 No
