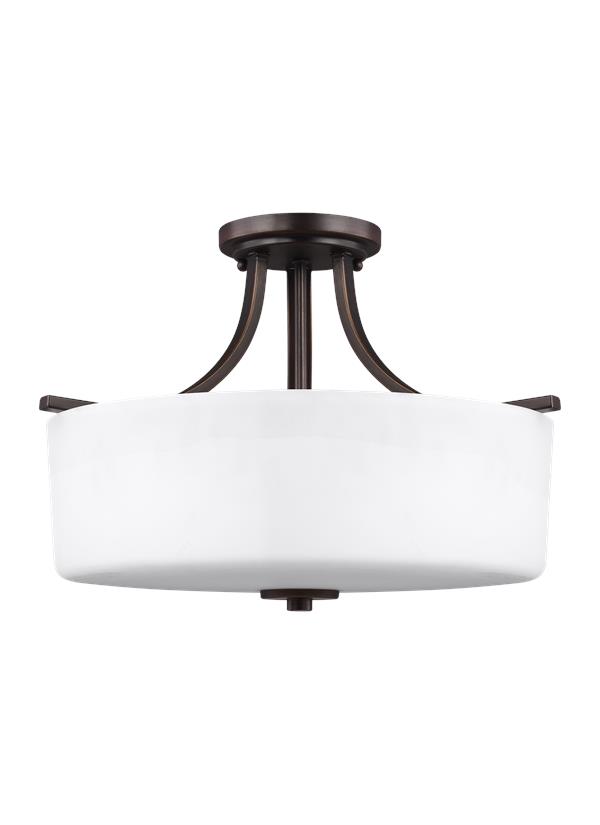

7728803EN3-710: Three Light Semi-Flush Mount

Collections:

Canfield (Primary)
Kemal

Featured in the decorative Canfield collection

3 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Etched / white inside glass shade

ENERGY STAR® Qualified

UPC #:785652060502

Finish: Bronze (710)

Dimensions:


Diameter:	16''
Height:	12 1/2''

Weight:

9.5 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

3 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Bronze

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990C7728803-CAN)
Trilingual (English, Spanish, and French) (7728803_)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Etched / White Inside

G560291-303

5 1/8

15 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	7/8			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	7728803EN3-710	1	785652060502	19	18.5	12.5	2.543	10.5	0	Yes
Master Pack	7728803EN3-710	0	10785652060509
NJ Pallet		28		48	40	72.35	80.389	294		No
NV Pallet		28		48	40	72.35	80.389	294		No

	Job Name:	Job Type:
	Comments:	Quantity:
