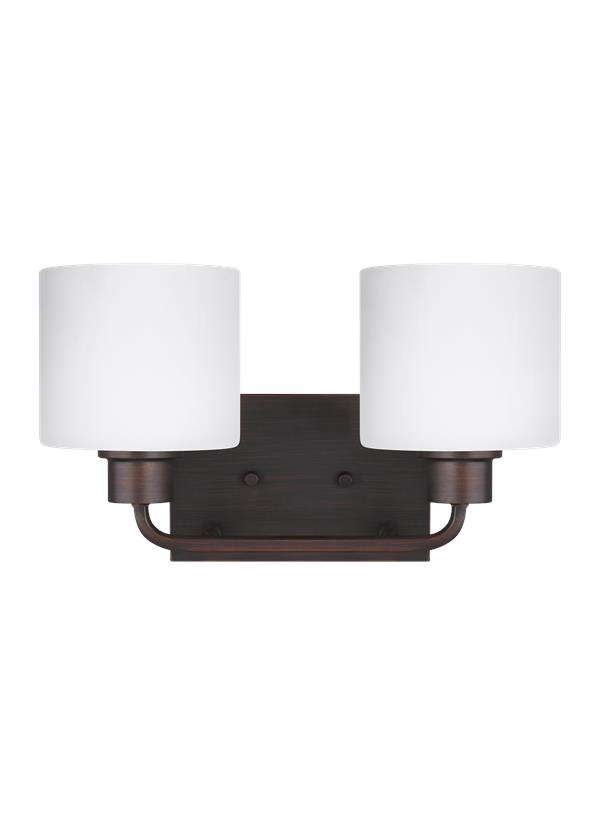

4428802-710: Two Light Wall / Bath


Collection:  Canfield

Featured in the decorative Canfield collection

2 A19 Medium 100 watt light bulbs

Etched / white inside glass shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652059841

Finish:   Bronze (710)
Dimensions:

Width: 14 1/4''
Height: 8 3/8''
Weight: 3.2 lbs.
Extends: 7 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4128801 4428802 4428803 4428804)
Trilingual (English, Spanish, and French) (990W4128801-442880_-CAN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 2 G560290-303     4 3/4 5 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  7 5/8  7/8    5 7/8  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4428802-710 1  785652059841  15 13.75 8.25 0.985 4.5 0 Yes
Master Pack 4428802-710 0  10785652059848
NJ Pallet   75    48 40 71.5 79.444 337.5 No
NV Pallet   75    48 40 71.5 79.444 337.5 No
