602493S-04: Extra Large Pendant LED



Collection:  Leo - Hanging Globe

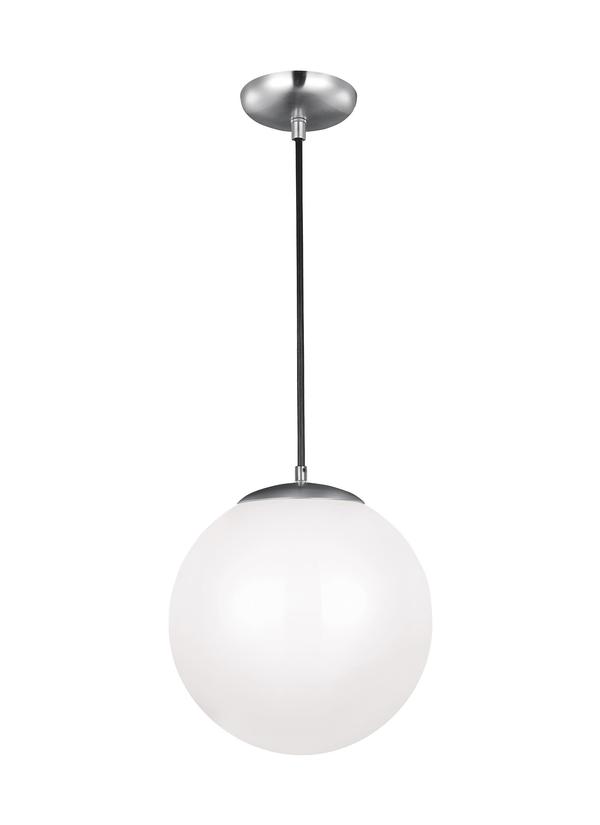

LED Pendant Light Satin Aluminum with Opal Glass.

Versatile Lighting Expressions Using Pendant Lighting. Decorate With Large Size One Light Fixture Finished in Satin Aluminum With Opal Opaque Glass. Hangs with sleek black wire for a retro appeal.

Supplied with adjustable 10 feet of wire cord to allow for unlimited variations of hanging heights

LED is a rapidly-developing lighting technology that cuts energy use by more than 80 percent

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

5-year manufacturer warranty

UPC #:785652064692

Finish:   Satin Aluminum (04)

Dimensions:

Diameter: 14''
Height: 14 3/4''
Weight: 5.5 lbs.
Overall Height: 128''
Wire: 120'' (color/Black Fabric Cord)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 14
Watts Consumed: 14
Watts Rated: 14
Hours Rated: 50000
Lumens: 1000
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Modules 14w Max. 120v - included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Advanced LED technology that warms in color when dimmed (3000K - 2200K).
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Satin Aluminum
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (6018, 602, 6501)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Smooth White 1 5111-34     13 3/8 14 5 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 602493S-04 785652064692  15.5 16 17.75 2.547 6.4 0 Yes
Master Pack 602493S-04 10785652064699
NJ Pallet   24    48 40 68.5 76.111 153.6 No
NV Pallet   24    48 40 68.5 76.111 153.6 No
