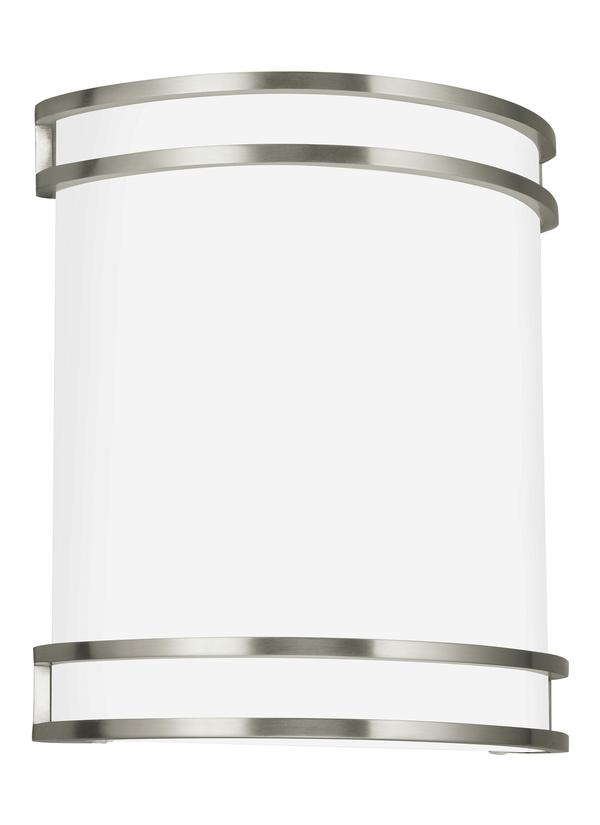

4933593S-962: LED Wall Sconce


Collections: Ravel (Primary)
ADA Wall Sconces


Featured in the decorative ADA Wall Sconces collection


Satin white acrylic diffuser

Meets American with Disabilities Act standard extension requirements

Advanced LED technology that warms in color when dimmed (3000K - 2200K).

UPC #:785652064234

Finish:   Brushed Nickel (962)
Dimensions:

Width: 9 1/2''
Height: 10 1/2''
Weight: 2.2 lbs.
Extends: 4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 14
Watts Consumed: 14
Watts Rated: 14
Hours Rated: 50000
Lumens: 1000
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Modules 14w Max. 120v - included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • Advanced LED technology that warms in color when dimmed (3000K - 2200K).
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4933593s)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic Satin White 1     9 1/4 10 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 10 1/2  7 1/4  1    5 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4933593S-962 1  785652064234  11.5 5.75 13.5 0.517 3.13 0 Yes
Master Pack 4933593S-962 4  10785652064231  23.25 12.5 14.5 2.439 14.45 0 Yes
NJ Pallet   120    48 40 77 85.556 433 No
NV Pallet   100    48 40 78 86.667 361.25 No
