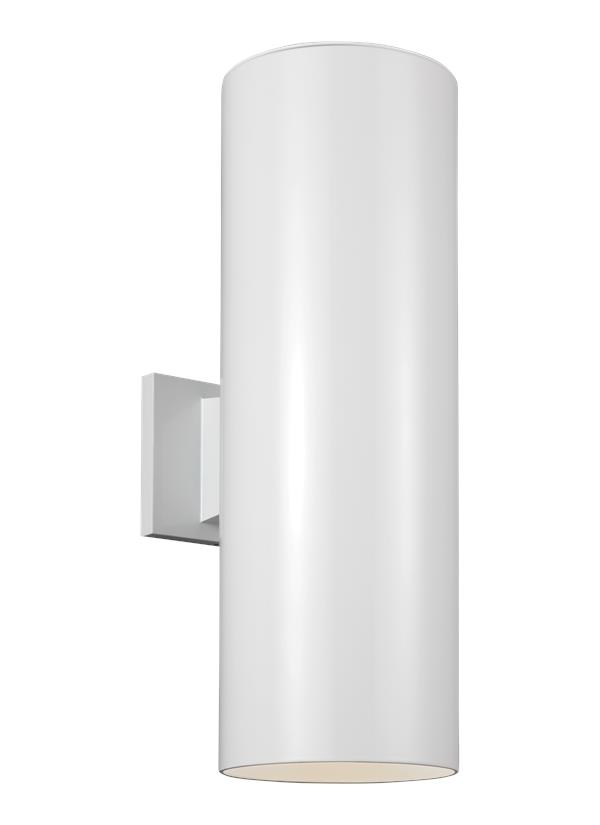

8413997S-15: Large 2 LED Wall Lantern


Collection:  Outdoor Cylinders

Featured in the decorative Outdoor Cylinders collection

LED

tempered glass

Advanced LED technology that warms in color when dimmed (2700K - 2200K).

Powder coat added to the finish to protect against aging.

UPC #:785652063770

Finish:   White (15)
Dimensions:

Width: 6''
Height: 18 1/4''
Weight: 4.3 lbs.
Extends: 8 3/4''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 27.5
Watts Consumed: 27.5
Watts Rated: 27.5
Hours Rated: 50000
Lumens: 744
Bulb Temp: 2700 °K
CRI: 90
Bulbs:
  2 - LED Integrated Modules 14w Max. 120v - included
Features:
  • Advanced LED technology that warms in color when dimmed (2700K - 2200K).
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - White
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_13_91S_-BUL)
Trilingual (English, Spanish, and French) (990W8_13_9_S_-BUL)
Trilingual (English, Spanish, and French) (990W8_13_9_S-BUL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Glass Glass Tempered Glass 1     1/8   5 5/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  4 1/2  2 7/8    9 1/8  9 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8413997S-15 1  785652063770  9.5 7 20 0.77 6.4 0 Yes
Master Pack 8413997S-15 4  10785652063777  19.75 14.5 20.75 3.439 27 0 Yes
NJ Pallet   84    48 40 67.5 75 567 No
NV Pallet   84    48 40 67.5 75 567 No
