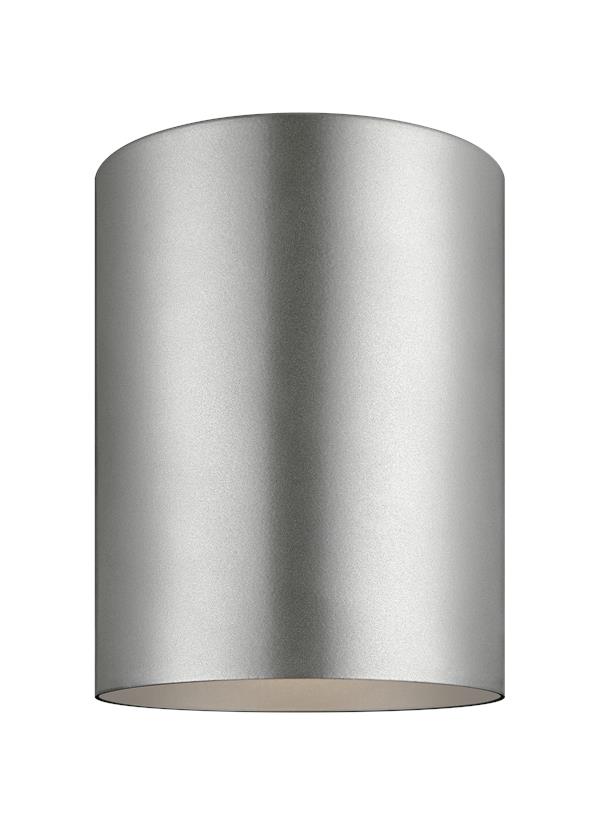

7813897S-753: Small LED Ceiling Flush Mount



Collection:  Outdoor Cylinders


Featured in the decorative Outdoor Cylinders collection

LED

Advanced LED technology that warms in color when dimmed (2700K - 2200K).

Powder coat added to the finish to protect against aging.

Meets Title 24 energy efficiency standards

UPC #:785652063633

Finish:   Painted Brushed Nickel (753)

Dimensions:

Diameter: 5 1/8''
Height: 6 5/8''
Weight: 0.7 lbs.
Wire: 6'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 14.4
Watts Consumed: 14.4
Watts Rated: 14.4
Hours Rated: 50000
Lumens: 400
Bulb Temp: 2700 °K
CRI: 90
Bulbs:
  1 - LED Integrated Modules 14w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Advanced LED technology that warms in color when dimmed (2700K - 2200K).
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Painted Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7813_9_S-BUL)
Trilingual (English, Spanish, and French) (7813897S)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     5 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7813891S-753 785652063633  9 7 6.75 0.246 1.1 0 Yes
Master Pack 7813897S-753 12  10785652063630  21.25 18.5 14.5 3.299 14.1 0 Yes
NJ Pallet   264    48 40 75 83.333 310 No
NV Pallet   264    48 40 75 83.333 310 No
