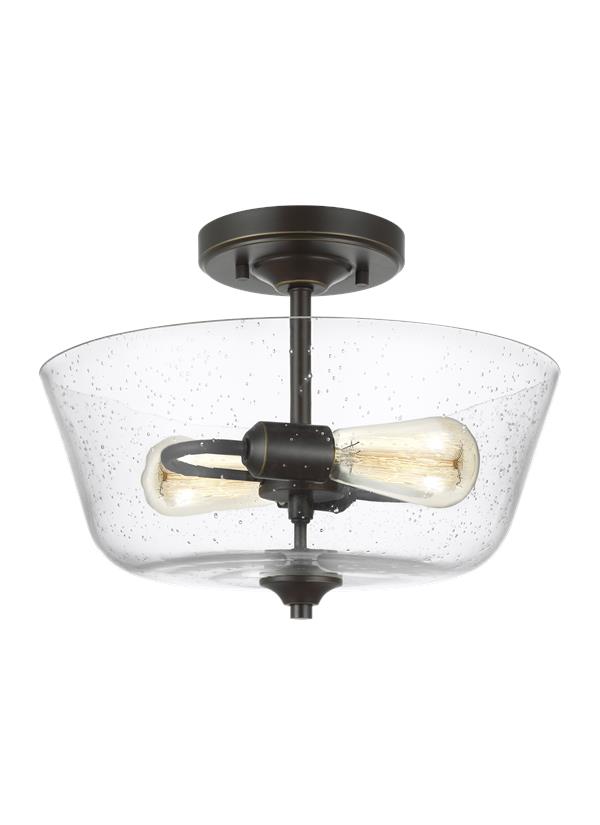

7714502-782: Two Light Ceiling Semi-Flush Mount



Collection:  Belton


Three Light Flush Mount Fixture in Heirloom Bronze Finish with Satin Etched Glass Shade

Supplied with adjustable 6.5-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

1-year manufacturer warranty

UPC #:785652060991

Finish:   Heirloom Bronze (782)

Dimensions:

Diameter: 15''
Height: 10 3/8''
Weight: 5.2 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Vintage lamp(s) recommended for aesthetics
Material List:
1 Body - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C77_02-BEL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Glass Clear Seeded 1 G560289-67     5 1/2 15
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 5/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7714502-782 785652060991  19 19 11 2.298 7.5 250 Yes
NJ Pallet   30    48 40 69.25 76.944 225 No
NV Pallet   32    48 40 72 80 245 No
