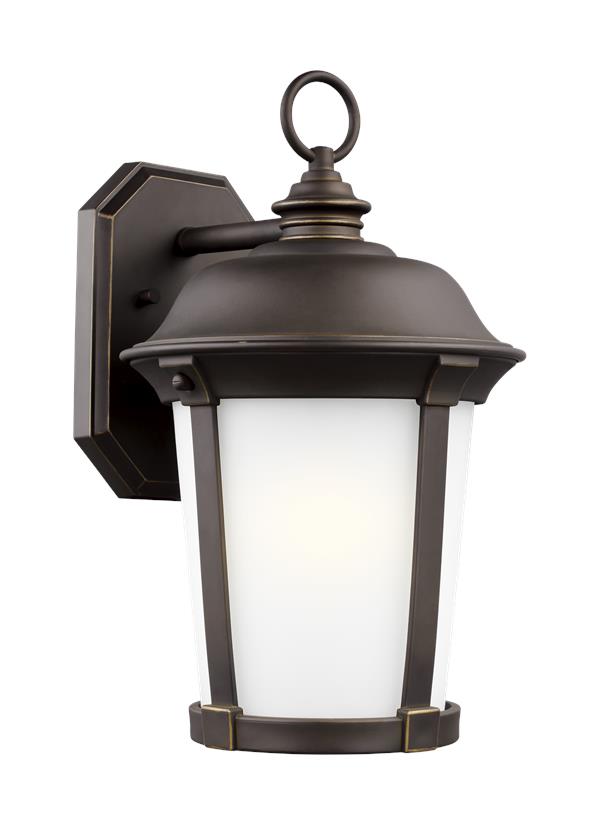

8750701EN3-71: Large One Light Outdoor Wall Lantern


Collection:  Calder

Featured in the decorative Calder collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

Satin Etched glass shade

Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.

UPC #:785652056871

Finish:   Antique Bronze (71)
Dimensions:

Width: 10''
Height: 16 1/2''
Weight: 5.1 lbs.
Extends: 11 3/8''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - StoneStrong - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_50701-CLR)
Trilingual (English, Spanish, and French) (8750)
Trilingual (English, Spanish, and French) (8750701 8550701 8650701)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1 G560301-619     8 5/8 7 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8 7/8  5 7/8  1    5 3/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8750701EN3-71 1  785652056871  22 13 14.25 2.359 7.6 0 Yes
Master Pack 8750701EN3-71 0  10785652056878
NJ Pallet   30    48 40 70 77.778 228 No
NV Pallet   30    48 40 70 77.778 228 No
