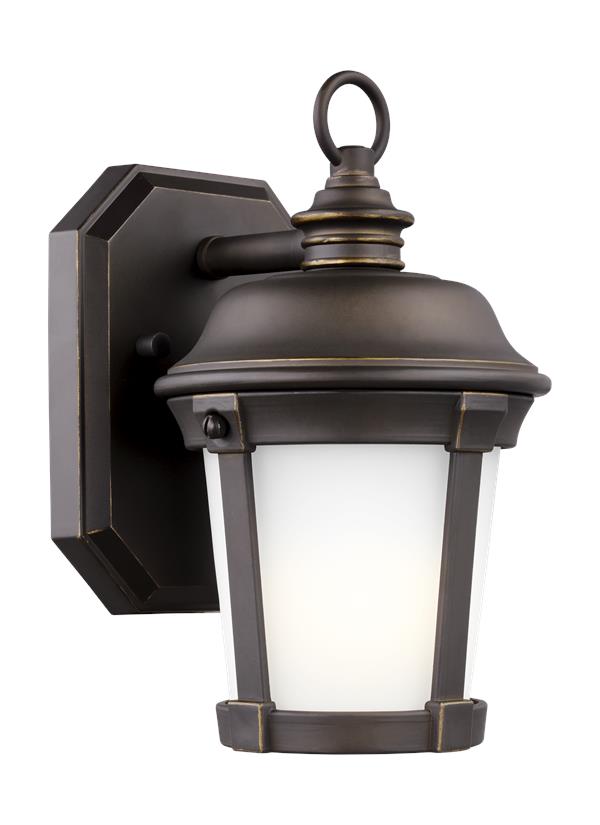

8550701EN3-71: Small One Light Outdoor Wall Lantern


Collection:  Calder

Featured in the decorative Calder collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

Satin Etched glass shade

Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.

UPC #:785652056833

Finish:   Antique Bronze (71)
Dimensions:

Width: 6''
Height: 10''
Weight: 2.6 lbs.
Extends: 7 1/4''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - StoneStrong - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_50701-CLR)
Trilingual (English, Spanish, and French) (8550)
Trilingual (English, Spanish, and French) (8750701 8550701 8650701)
Trilingual (English, Spanish, and French) (8550_)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1 G560299-619     5 4 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7 1/8  5 1/8  1    4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8550701EN3-71 1  785652056833  15 10 9.75 0.846 3.6 0 Yes
Master Pack 8550701EN3-71 0  10785652056830
NJ Pallet   96    48 40 75 83.333 345.6 No
NV Pallet   96    48 40 75 83.333 345.6 No
