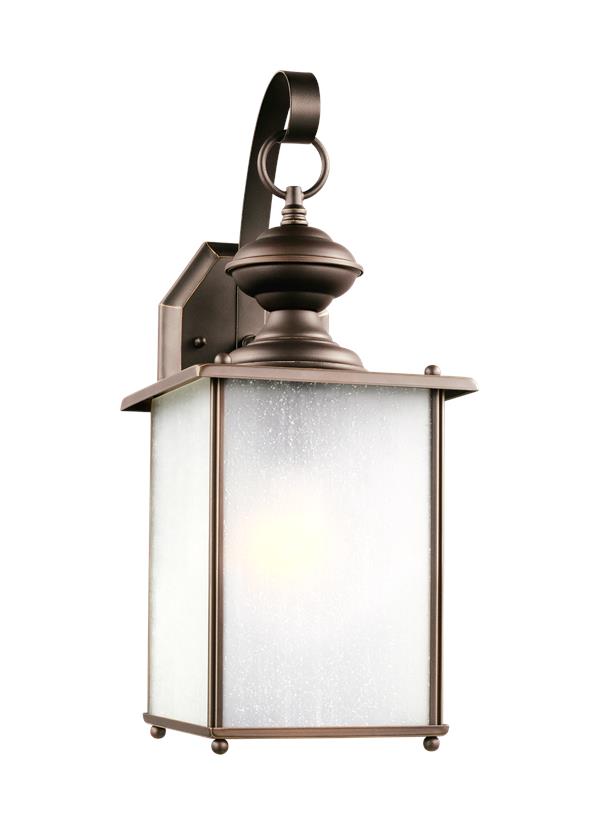

84580EN3-71: One Light Outdoor Wall Lantern

	Collection: Jamestowne
	One Light LED Outdoor Lantern in Antique Bronze Finish with Frosted Seeded Glass
	Supplied with 6.5-inches of wire
	An ENERGY STAR® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort
	Designed for damp and wet environments allowing for direct water contact
	3-year manufacturer warranty
	Meets Title 24 energy efficiency standards
	UPC #:785652058028
	Finish: Antique Bronze (71)

Dimensions:


Width:	7''
Height:	17''

Weight:

3.9 lbs.

Extends:

8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Brass - Antique Bronze

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (HC-922FS)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Frosted Seeded

5 7/16

8 9/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5 1/2	4 3/4	3/4		6 1/2	10 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	84580EN3-71	1	785652058028	9.25	8.25	18	0.795	4.6	0	Yes
Master Pack	84580EN3-71	2	10785652058025	17	8.34	19	1.559	10	0	Yes
NJ Pallet		68		48	40	75	83.333	360.4		No
NV Pallet		68		48	40	75	83.333	360.4		No
