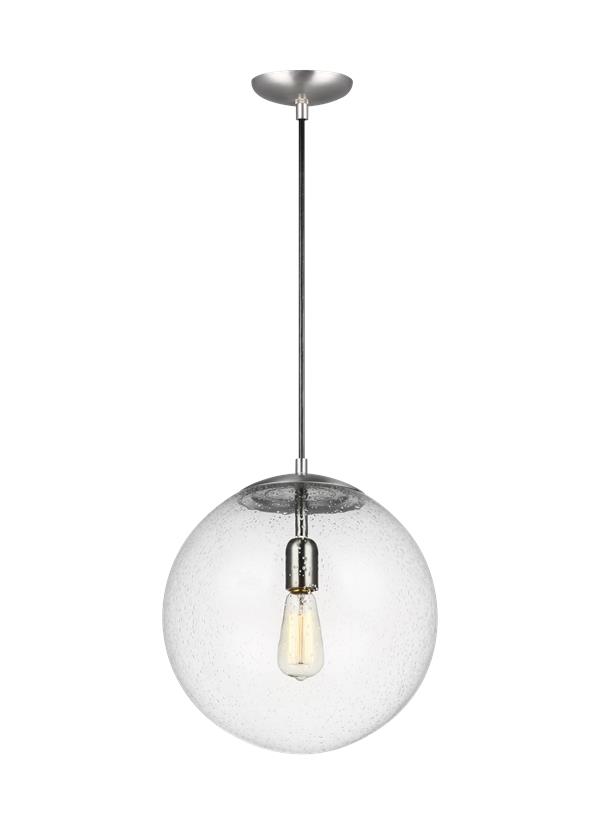

6801801-04: Extra Large One Light Pendant with Clear Seeded Glass


Collection:  Leo - Hanging Globe

Pendant Single Light Satin Aluminum with Clear Seeded Glass.

Versatile Lighting Expressions Using Pendant Lighting. Decorate With Large Size One Light Fixture Finished in Satin Aluminum With Clear Seeded Glass. Hangs with sleek black wire for a retro appeal.

Featured in the decorative Leo - Hanging Globe collection

1 ST19 Medium 100 watt light bulb and 1 A19 Medium 100 watt light bulb

Clear seeded glass diffuser

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652057090

Finish:   Satin Aluminum (04)
Dimensions:

Diameter: 14''
Height: 14 3/4''
Weight: 4.82 lbs.
Overall Height: 128''
Wire: 120'' (color/Black Fabric Cord)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium ST19 100w Max. 120v - Not included
0 - Medium A19 100w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Satin Aluminum
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (6018, 602, 6501)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Seeded 1       13 3/8 14 5 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6801801-04 1  785652057090  18 16 16 2.667 6.7 0 Yes
Master Pack 6801801-04 0  10785652057097
NJ Pallet   24    48 40 68.25 75.833 160.8 No
NV Pallet   24    48 40 68.25 75.833 160.8 No
