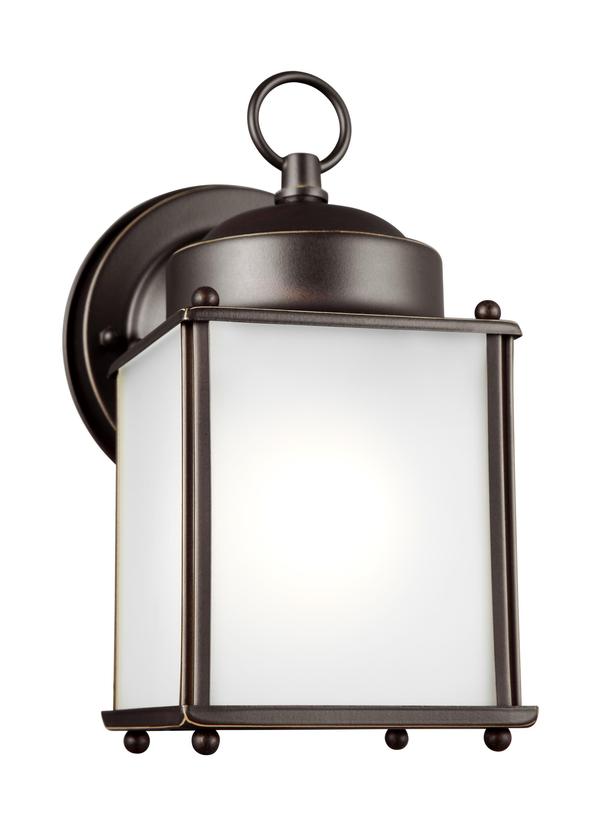

8592001EN3-71: One Light Outdoor Wall Lantern

	Collection: New Castle
	Simple Details Create Stylish Outdoor Wall Lantern. Antique Bronze Solid Brass and Satin Etched Glass.
	Simple details create a stylish outdoor wall lantern. Antique Bronze solid Brass and Satin Etched glass.
	Featured in the decorative New Castle collection
	1 A19 Medium 9.3 watt light bulb
	Fixture is supplied with 1 light bulb
	Satin Etched glass panels
	ENERGY STAR® Qualified
	UPC #:785652058080
	Finish: Antique Bronze (71)

Dimensions:


Width:	4 1/4''
Height:	8 1/4''

Weight:

1.4 lbs.

Extends:

5 1/2''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulb Appearance:

Clear

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Brass - Antique Bronze

1 Canopy - Brass - Antique Bronze

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Instruction Sheets:

English (8592 8592001 8593 8593001)
French (F-009)
Trilingual (English, Spanish, and French) (HC-231)
Trilingual (English, Spanish, and French) (8602 8592001 8593 8593001)
Trilingual (English, Spanish, and French) (8592 8592001 8593 8593001)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Satin Etched

G500052-619

3 3/8

4 5/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate			2 1/16	4 1/2	2 3/4	5 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8592001EN3-71	1	785652058080	9.5	6.75	5.25	0.195	1.7	0	Yes
Master Pack	8592001EN3-71	6	10785652058087	16.25	14.25	10.5	1.407	11.1	0	Yes
NJ Pallet		300		48	40	74	82.222	555.1		No
NV Pallet		300		48	40	74	82.222	555.1		No
