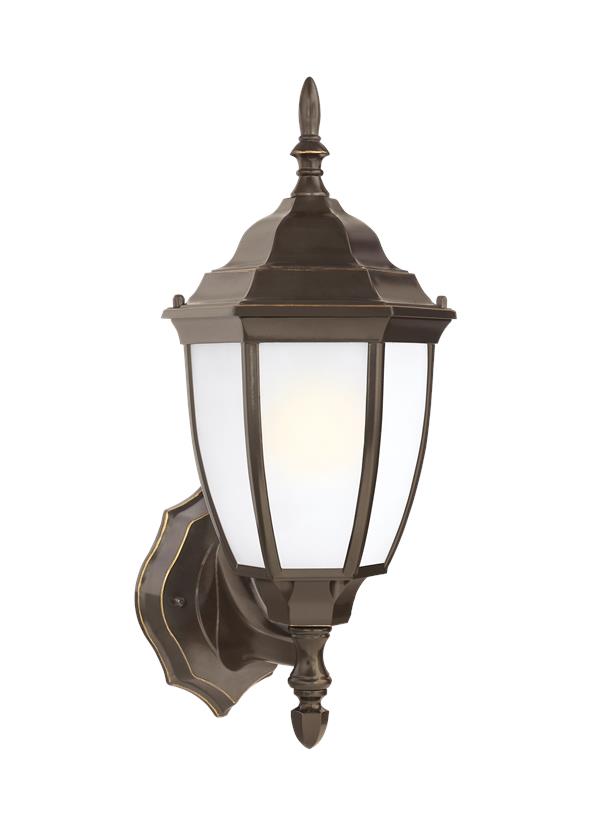

89940EN3-782: One Light Outdoor Wall Lantern

	Collection: Bakersville
	One Light LED Outdoor Wall Lantern in Heirloom Bronze Finish with Satin Etched Glass
	Featured in the decorative Bakersville collection
	1 A19 Medium 9.3 watt light bulb
	Fixture is supplied with 1 light bulb
	Satin Etched glass shades
	ENERGY STAR® Qualified
	UPC #:785652044472
	Finish: Heirloom Bronze (782)

Dimensions:


Width:	6 1/2''
Height:	15 1/2''

Weight:

2 lbs.

Extends:

7 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Wall / Bath

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

ENERGY STAR® Qualified
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Undefined

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (HC-1703FS)
Trilingual (English, Spanish, and French) (990W8994_-BAK)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

2 15/16

5 9/32

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	6 3/8	4 11/16	7/8		12 1/4	3 1/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	89940EN3-782	1	785652044472	14	9.75	8.25	0.652	2.9	175	Yes
NJ Pallet		135		48	40	70	77.778	391.5		No
NV Pallet		96		48	40	70	77.778	278.4		No
