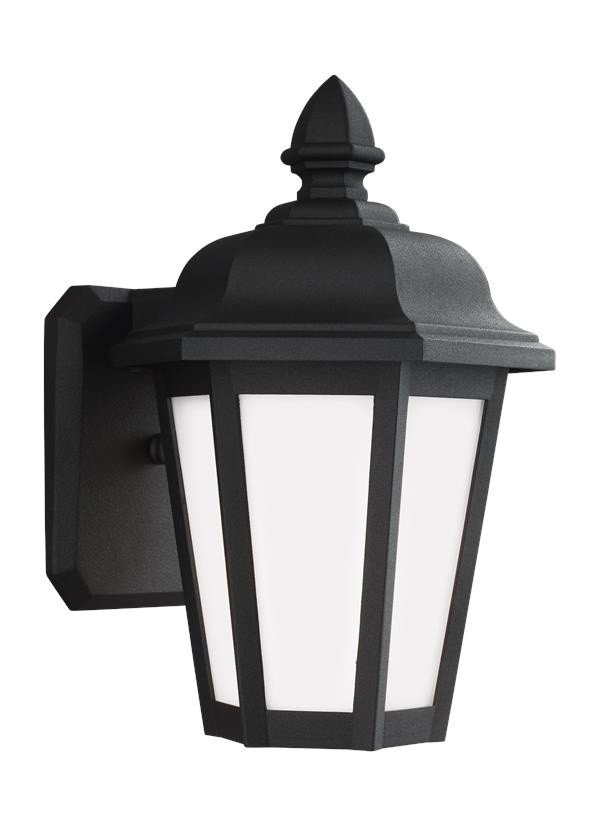

89822EN3-12: Small One Light Outdoor Wall Lantern


Collection:  Brentwood

Black Powdercoat Cast Aluminum One Light LED Outdoor Wall Lantern with White Glass. Long Molded Panels.

Rugged but decorative cast aluminum. Outdoor wall lantern made with durable black powdercoat finish over cast aluminum and White Glass.

Featured in the decorative Brentwood collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

smooth white glass panels

ENERGY STAR® Qualified

UPC #:785652053320

Finish:   Black (12)
Dimensions:

Width: 7''
Height: 10 1/4''
Weight: 2.5 lbs.
Extends: 7''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Appearance: Clear
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Canopy - Die Cast Aluminum - Undefined
1 Cap - Die Cast Aluminum - Undefined
1 Body - Die Cast Aluminum - Undefined
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8822-BRE)
Trilingual (English, Spanish, and French) (990W8_22-BRE)
Trilingual (English, Spanish, and French) (8824 89822 89824)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Smooth White 6     2 3/16 5 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 3/16  4 3/8  3/8    6  4 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 89822EN3-12 1  785652053320  10 9 11 0.573 2.8 0 Yes
Master Pack 89822EN3-12 3  10785652053327  27 10.5 12 1.969 9.8 0 Yes
NJ Pallet   90    48 40 69 76.667 294 No
NV Pallet   90    48 40 70 77.778 294 No
