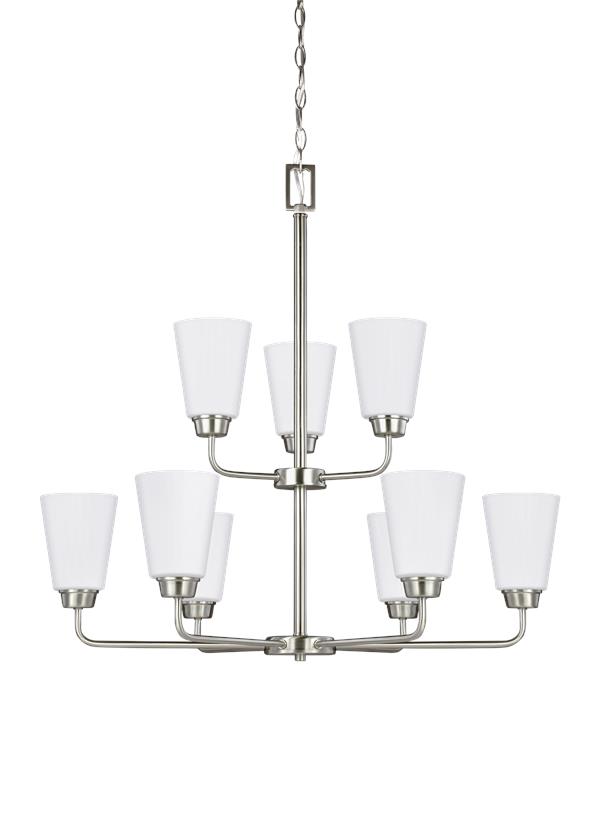

3115209EN3-962: Nine Light Chandelier

	Collection: Kerrville
	Featured in the decorative Kerrville collection
	9 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Satin Etched glass shades
	ENERGY STAR® Qualified
	UPC #:785652048258
	Finish: Brushed Nickel (962)

Dimensions:


Diameter:	29''
Height:	29 1/2''

Weight:

18.8 lbs.

Overall Height:

103''

Wire:

120'' (color/Clear Silver)

Chain:

72''

Mounting Proc.:

Center Lock-Up

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

9 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Supplied with wire pre-laced through chain

Material List:

1 Body - Steel - Brushed Nickel

1 Chain - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (33115203 3115205 3115209)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560218-619

5 3/8

4 3/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3/4			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	3115209EN3-962	1	785652048258	29.75	27	17.75	8.251	24.2	0	Yes
Master Pack	3115209EN3-962	0	10785652048255
NJ Pallet		7		48	40	75	83.333	169.4		No
NV Pallet		7		48	40	75	83.333	169.4		No
