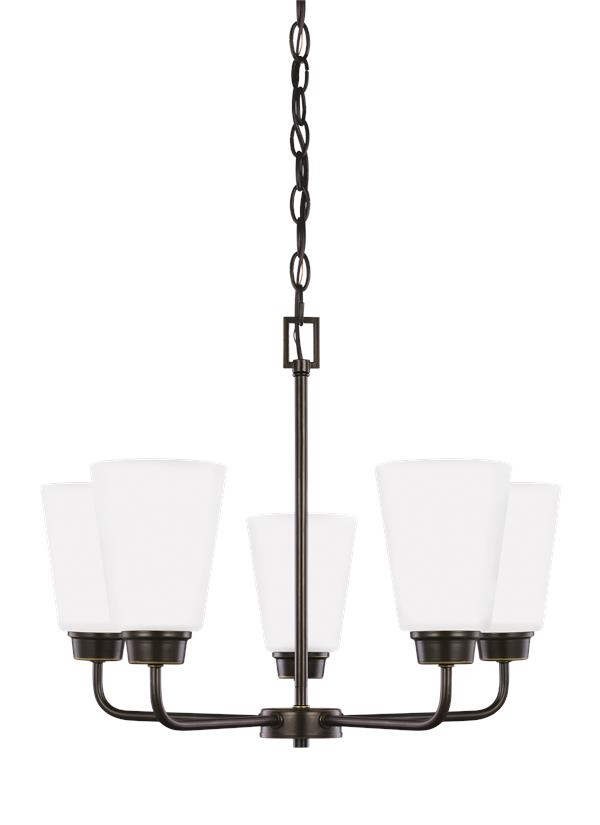

3115205EN3-782: Five Light Chandelier


Collection:  Kerrville

Featured in the decorative Kerrville collection

5 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Satin Etched glass shades

Adjustable arms rotate for up or down lighting

UPC #:785652048227

Finish:   Heirloom Bronze (782)
Dimensions:

Diameter: 20 3/8''
Height: 17''
Weight: 8.2 lbs.
Overall Height: 55 1/8''
Wire: 72'' (color/Brown)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulbs:
  5 - LED Medium A19 9w Max. 120v - included
Features:
  • Adjustable arms rotate for up or down lighting
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Heirloom Bronze
1 Chain - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH311520_-KER)
Trilingual (English, Spanish, and French) (33115203 3115205 3115209)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 5 G560218-619     5 3/8 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3115205EN3-782 1  785652048227  20.5 20.5 8.25 2.006 1.3 175 Yes
NJ Pallet   40    48 40 72 80 412 No
NV Pallet   40    48 40 72 80 412 No
