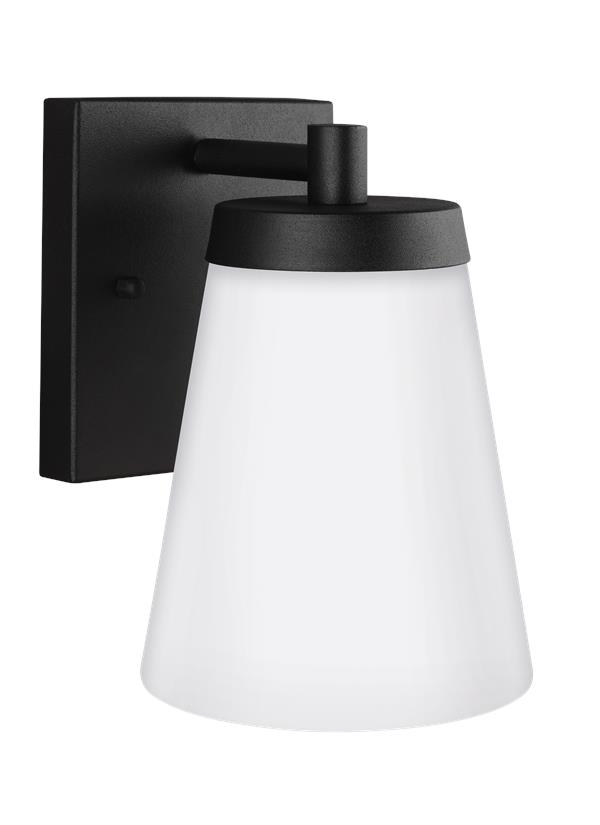

8538601EN3-12: Small One Light Outdoor Wall Lantern

	Collection: Renville
	Supplied with 6.5-inches of wire
	An ENERGY STAR® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort
	Designed for damp and wet environments allowing for direct water contact
	3-year manufacturer warranty
	Meets Title 24 energy efficiency standards
	UPC #:785652046797
	Finish: Black (12)

Dimensions:


Diameter:	5 1/4''
Width:	5 1/4''
Height:	7 3/8''

Weight:

1.6 lbs.

Extends:

5 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Undefined

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990W8_38601-REN)
Trilingual (English, Spanish, and French) (8538601 8638601)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

5 1/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5	4 1/2	3/4		2 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8538601EN3-12	1	785652046797	13.25	9.75	8	0.598	2	0	Yes
Master Pack	8538601EN3-12	0	10785652046794
NJ Pallet		120		48	40	75	83.333	240		No
NV Pallet		120		48	40	75	83.333	240		No
