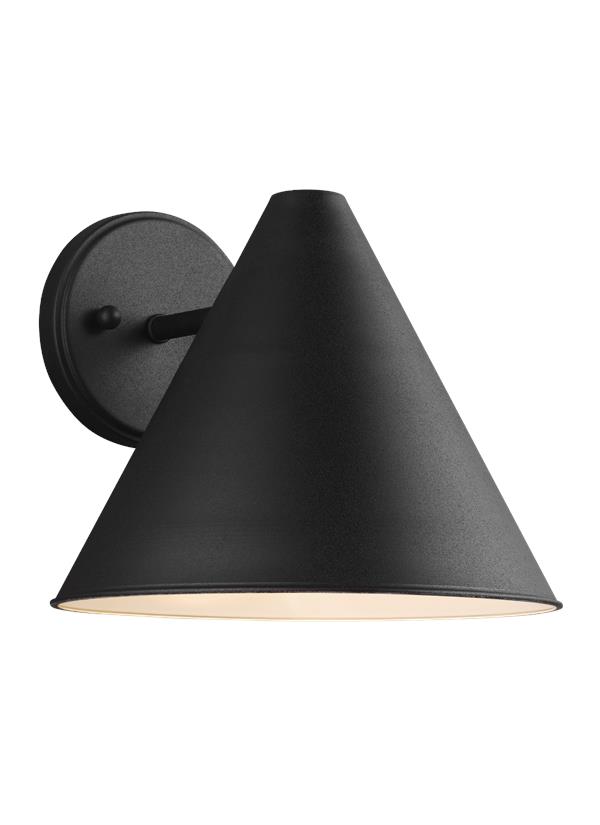

8538501EN3-12: Medium One Light Outdoor Wall Lantern

	Collection: Crittenden
	Supplied with 6.5-inches of wire
	An ENERGY STAR® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort
	Designed for damp and wet environments allowing for direct water contact
	3-year manufacturer warranty
	The Crittenden is offered in two finishes, Satin Aluminum and Black, each offering a completely unique interpretation of the design.
	UPC #:785652053009
	Finish: Black (12)

Dimensions:


Width:	10''
Height:	8 1/2''

Weight:

1.6 lbs.

Extends:

11 3/8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Undefined

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (8438501 8538501 8638501)
Trilingual (English, Spanish, and French) (8438501 8538501 8638501)
Trilingual (English, Spanish, and French) (990W8538501-CRI)

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate			7/8	5	2 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8538501EN3-12	1	785652053009	14	13	11.5	1.211	3.1	0	Yes
Master Pack	8538501EN3-12	0	10785652053006
NJ Pallet		54		48	40	72	80	167.4		No
NV Pallet		50		48	40	72	80	150		No
