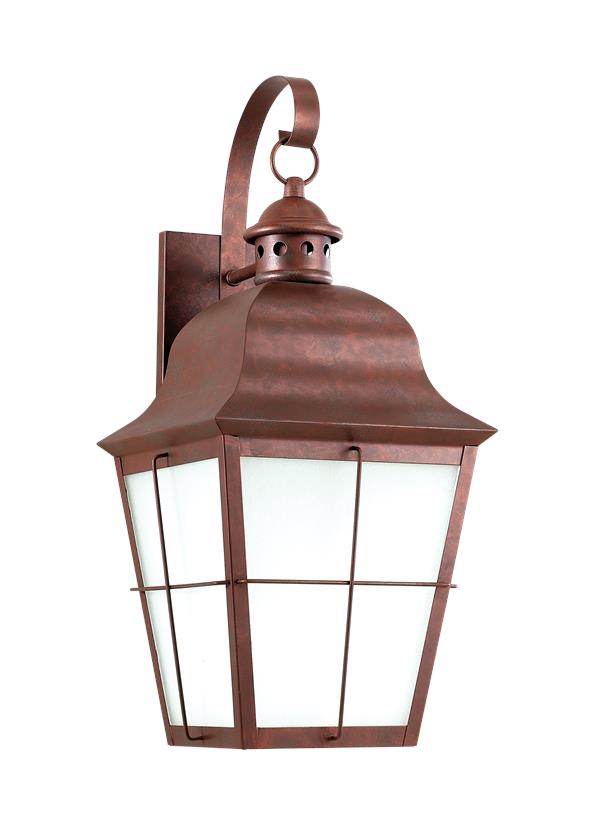

8463DEN3-44: One Light Outdoor Wall Lantern


Collection:  Chatham

Neighbor friendly, Dark Sky Qualified outdoor wall lantern finished in weathered copper finish over solid brass with clear seeded glass. Specially designed socket placement and reflector provide glare-free illumination and enhanced light cut off.

Weathered Copper Finished Dark Sky One Light LED Outdoor Wall Lantern with Clear Seeded Glass and Interior Aluminum Panels.

Ref #: 8463-44

Featured in the decorative Chatham collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

Clear seeded glass panels and white aluminum panels

ENERGY STAR® Qualified

UPC #:785652052941

Finish:   Weathered Copper (44)
Dimensions:

Width: 9 1/4''
Height: 21''
Weight: 6.7 lbs.
Extends: 10''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Brass - Undefined
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)
Trilingual (English, Spanish, and French) (8463)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Seeded 4
Panel Aluminum White 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8  4 3/4  5/8    8 1/2  12 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8463DEN3-44 1  785652052941  13.75 13.5 24.12 2.591 10.65 0 Yes
Master Pack 8463DEN3-44 0  10785652052948
NJ Pallet   30    48 40 77 85.556 319.5 No
NV Pallet   30    48 40 77 85.556 319.5 No
