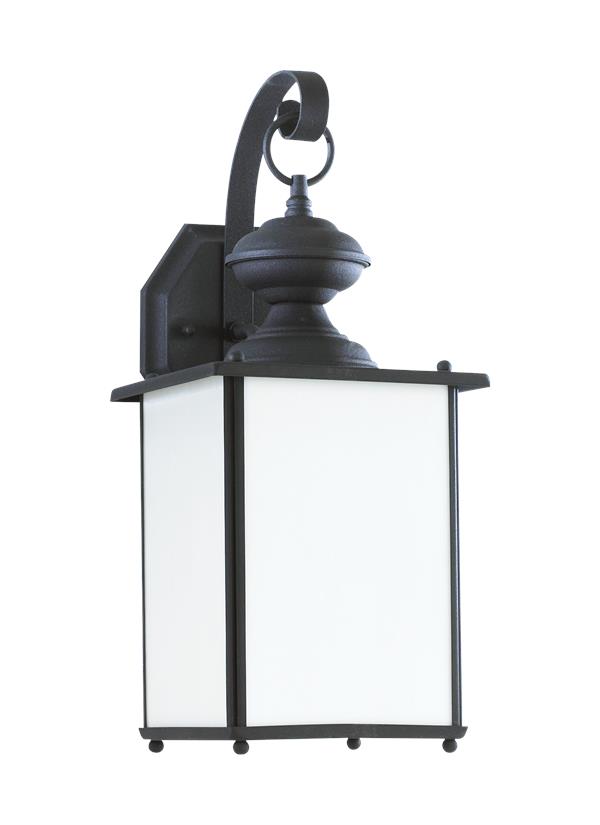

84158DEN3-12: One Light Outdoor Wall Lantern


Collection:  Jamestowne

Dark Sky One Light LED Outdoor Wall Lantern Finished in Black Solid Brass with Etched White Tiffany Glass and White Aluminum Panels.

Featured in the decorative Jamestowne collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

Etched white tiffany glass panels and white aluminum panels

ENERGY STAR® Qualified

UPC #:785652046087

Finish:   Black (12)
Dimensions:

Width: 7''
Height: 17''
Weight: 4.27 lbs.
Extends: 8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Undefined
4 Reflector - Aluminum - Undefined
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Etched White Tiffany 4
Panel Aluminum White 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 1/2  4 3/4  3/4    6 1/2  10 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 84158DEN3-12 1  785652046087  9 8.25 18.25 0.784 5 0 Yes
Master Pack 84158DEN3-12 2  10785652046084  18 10 19.25 2.005 10 0 Yes
NJ Pallet   68    48 40 71.25 79.167 340 No
NV Pallet   68    48 40 71.25 79.167 340 No
