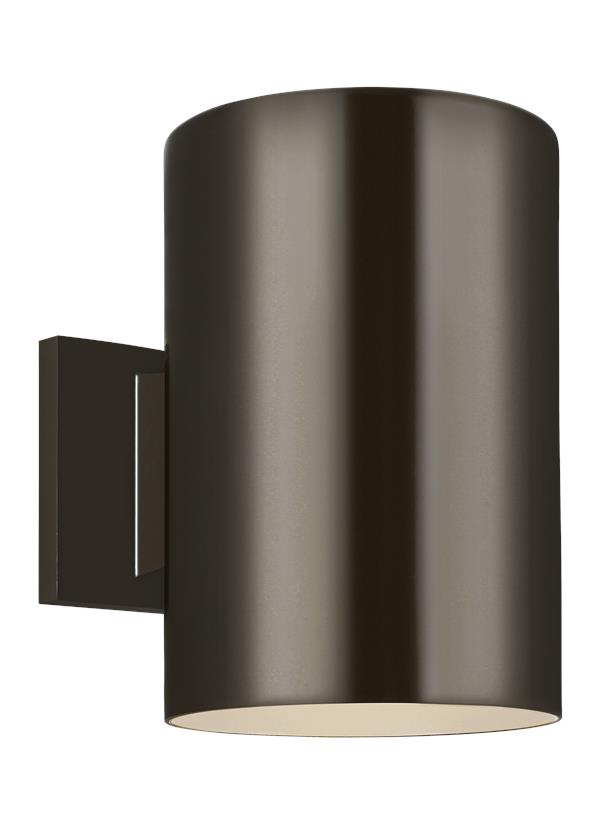

8313901EN3-10: Large One Light Outdoor Wall Lantern


Collection:  Outdoor Cylinders

Featured in the decorative Outdoor Cylinders collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

ENERGY STAR® Qualified

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

UPC #:785652044250

Finish:   Bronze (10)
Dimensions:

Width: 6''
Height: 9''
Weight: 2.8 lbs.
Extends: 8 3/4''
Wire: 6'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Powder coat added to the finish to protect against aging.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Undefined
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (8313801 8313901)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  4 1/2  2 7/8    4 1/2  4 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8313901EN3-10 1  785652044250  10.5 10 7.5 0.456 3.9 0 Yes
Master Pack 8313901EN3-10 6  10785652044257  22 20.75 11.5 3.038 25.7 0 Yes
NJ Pallet   168    48 40 73 81.111 719.6 No
NV Pallet   168    48 40 77 85.556 711 No
