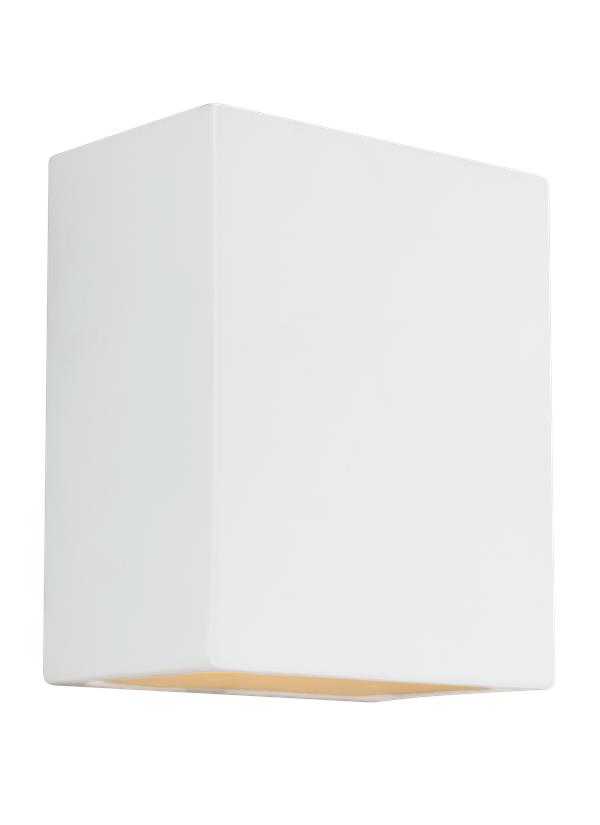

8304801EN3-714: One Light Outdoor Wall Lantern


Collection:  Paintable Ceramic Sconces

One Light LED Outdoor Wall Bracket in Tough Ceramic Material.

Acrylic or Latex paint suggested

Featured in the decorative Paintable Ceramic Sconces collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

unfinished ceramic diffuser

ENERGY STAR® Qualified

UPC #:785652052675

Finish:   Unfinished Ceramic (714)
Dimensions:

Width: 8''
Height: 10''
Weight: 3.6 lbs.
Extends: 5 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Ceramic - Undefined
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8304_01-PCS)
Trilingual (English, Spanish, and French) (9208304801-714 + 8304701EN3-714)
Trilingual (English, Spanish, and French) (9208304801-714-8304701EN3-714)
Trilingual (English, Spanish, and French) (8304801-714_8304701EN3-714)
Trilingual (English, Spanish, and French) (8304801-714 8304701EN3-714)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Ceramic Unfinished Ceramic 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 10  8  7/8    4 1/4  5 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8304801EN3-714 1  785652052675  13 10.5 7.5 0.592 4.6 0 Yes
Master Pack 8304801EN3-714 0  10785652052672
NJ Pallet   144    48 40 71.5 79.444 662.4 No
NV Pallet   144    48 40 71.5 79.444 662.4 No
