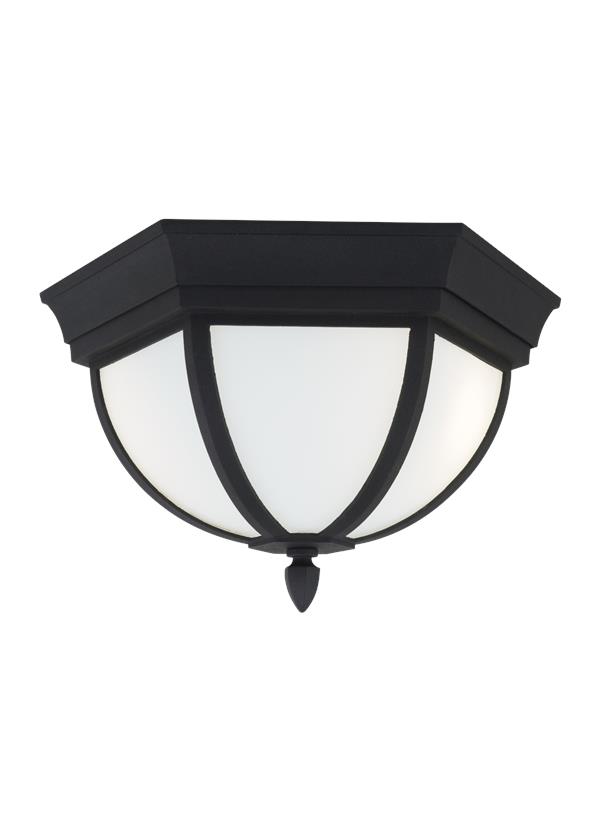

79136EN3-12: Two Light Outdoor Ceiling Flush Mount


Collections: Wynfield (Primary)
Bakersville
Brentwood


Two Light LED Outdoor Ceiling Fixture in Black Finish with Etched Glass, White Inside.

Featured in the decorative Wynfield collection

2 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Etched / white inside glass panels

ENERGY STAR® Qualified

UPC #:785652047978

Finish:   Black (12)
Dimensions:

Diameter: 12 3/4''
Height: 7 1/2''
Weight: 3.7 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (78136 79136)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Etched / White Inside 6   3 29/32 5 4 7/16
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 79136EN3-12 1  785652047978  14.25 12.5 10.75 1.108 4.1 0 Yes
Master Pack 79136EN3-12 0  10785652047975
NJ Pallet   56    48 40 76 84.444 229.6 No
NV Pallet   56    48 40 77 85.556 274 No
