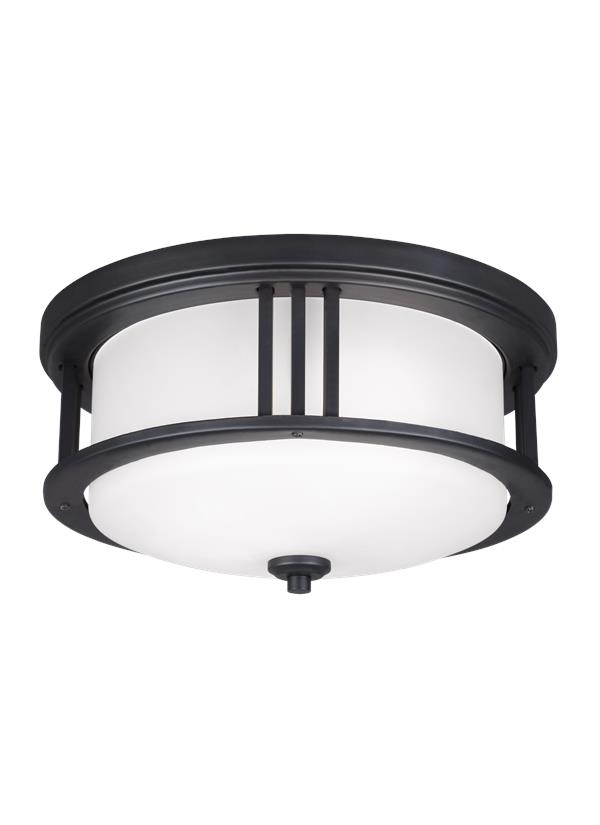

7847902EN3-12: Two Light Outdoor Ceiling Flush Mount

	Collection: Crowell
	Featured in the decorative Crowell collection
	2 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Satin Etched glass shade
	ENERGY STAR® Qualified
	UPC #:785652052460
	Finish: Black (12)

Dimensions:


Diameter:	14 1/8''
Height:	7''

Weight:

5.2 lbs.

Wire:

6'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

2 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Undefined

1 Canopy - Aluminum - Undefined

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (787902)
Trilingual (English, Spanish, and French) (990C7847902-CRO)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560202-619

5 3/8

11 3/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1			14 1/16

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	7847902EN3-12	1	785652052460	16.5	16.5	10	1.576	6.9	0	Yes
Master Pack	7847902EN3-12	0	10785652052467
NJ Pallet		48		48	40	71	78.889	332		No
NV Pallet		48		48	40	71	78.889	332		No
