Job Name:
 Job Type:
Comments:
 Quantity:
** By typing in the gray boxes above you can populate this form before printing.
** To save this document click on the logo above. A pdf document of this Specification Sheet will be created that can be saved locally.

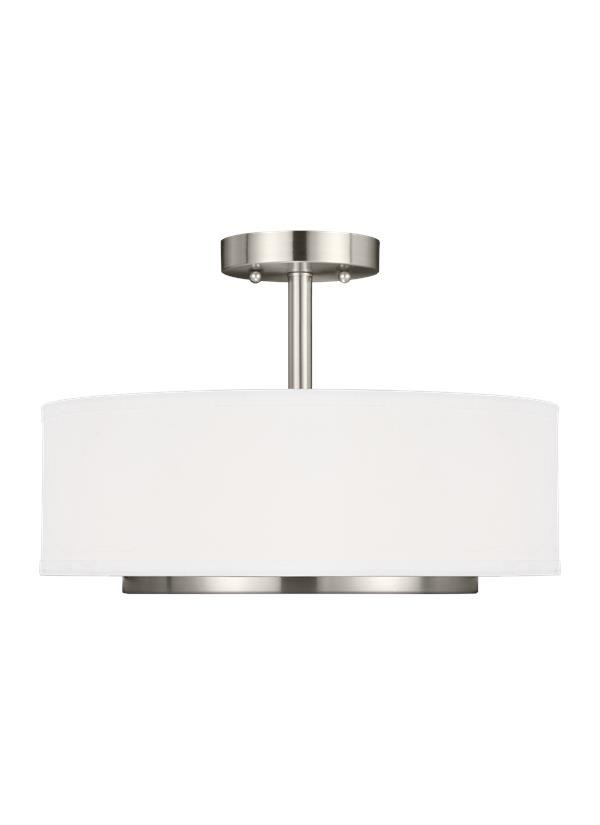

7728002EN3-962: Two Light Semi-Flush Convertible Pendant


Collection:  Nance

Featured in the decorative Nance collection

2 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Satin Etched glass diffuser and off-white faux silk fabric shade

Fixture is dual mount and may be installed semi-flush or as a pendant.

UPC #:785652046285

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 16 1/4''
Height: 12''
Weight: 6.2 lbs.
Height Flush: 10 3/4''
Wire: 72'' (color/Clear Silver)
Chain: 36''
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7728002-NAN)
Trilingual (English, Spanish, and French) (7728002)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Fabric Off-White Faux Silk 1       5 16 1/4
Diffuser Glass Satin Etched 1         10 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 31942-962 1  785652046285  18.5 18.5 9.75 1.931 7.8 0 Yes
Master Pack 7728002EN3-962 0  10785652046282
NJ Pallet   40    48 40 77 85.556 312 No
NV Pallet   40    48 40 77 85.556 312 No
