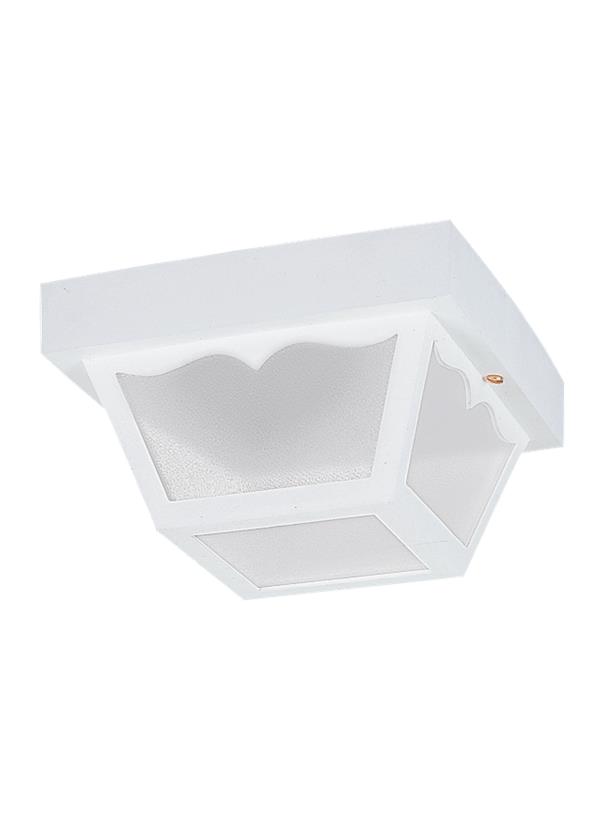

7569EN3-15: Two Light Outdoor Ceiling Flush Mount



Collection:  Outdoor Ceiling


Two Light LED Close to Ceiling Outdoor Decor Fixture in White Polypropylene with Clear Textured Glass. U.L. Listed for Damp Location.

White Outdoor Light with Clear Textured Glass Panels. Polypropylene construction offers non-corrosive, rust-free, outdoor solution.

Featured in the decorative Outdoor Ceiling collection

2 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Clear textured glass panels

ENERGY STARĀ® Qualified

UPC #:785652051852

Finish:   White (15)

Dimensions:

Length: 10 1/4"
Width: 10 1/4''
Height: 5 1/2''
Weight: 2.9 lbs.
Wire: 6 1/2'' (color/Black/White)
Connection: Mounted To Box
Bulb Appearance: Clear
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Polypropylene - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (HC-332)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear Textured 4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7569EN3-15 785652051852  11.25 11 8.5 0.609 3.9 0 Yes
Master Pack 7569EN3-15 10785652051859  26.25 23 12 4.193 26.2 0 Yes
NJ Pallet   108    48 40 74 82.222 471 No
NV Pallet   108    48 40 70 77.778 471 No
