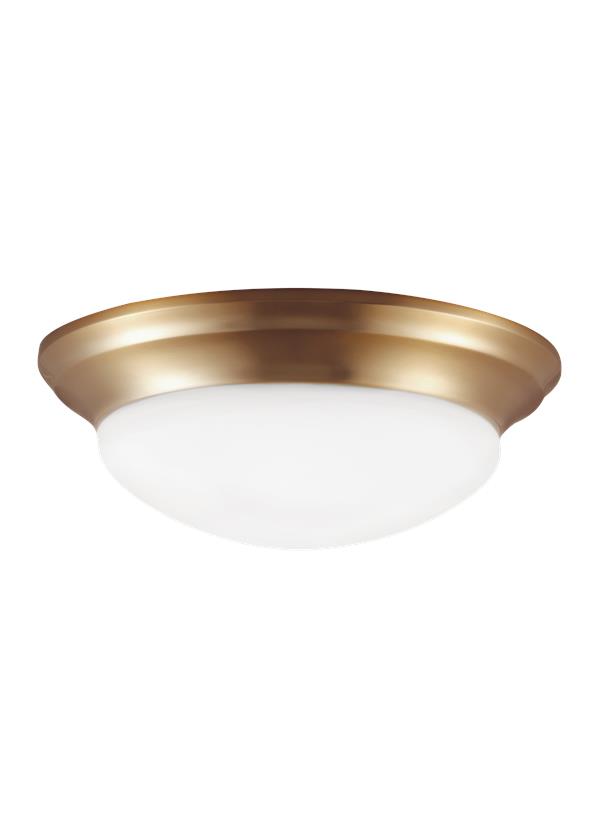

75436EN3-848: Three Light Ceiling Flush Mount

	Collection: Nash
	Three Light LED Flush Fixture in Satin Bronze Finish with Satin Etched Glass Shade
	Featured in the decorative Nash collection
	3 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Satin Etched glass diffuser
	ENERGY STAR® Qualified
	UPC #:785652051791
	Finish: Satin Brass (848)

Dimensions:


Diameter:	16 3/4''
Height:	5 1/2''

Weight:

5.5 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

3 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Sleek architectural look with exclusive 'twist-lock' design makes installation and relamping easy with no exposed screws

Material List:

1 Body - Steel - Satin Brass

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (75434 75435 75436 75444 75445 75446)
Trilingual (English, Spanish, and French) (75435 75436 75434 75446)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Glass

Satin Etched

4 7/16

12 3/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	75436EN3-848	1	785652051791	18	18	9	1.688	8.1	0	Yes
Master Pack	75436EN3-848	0	10785652051798
NJ Pallet		40		48	40	77	85.556	324		No
NV Pallet		40		48	40	77	85.556	324		No
