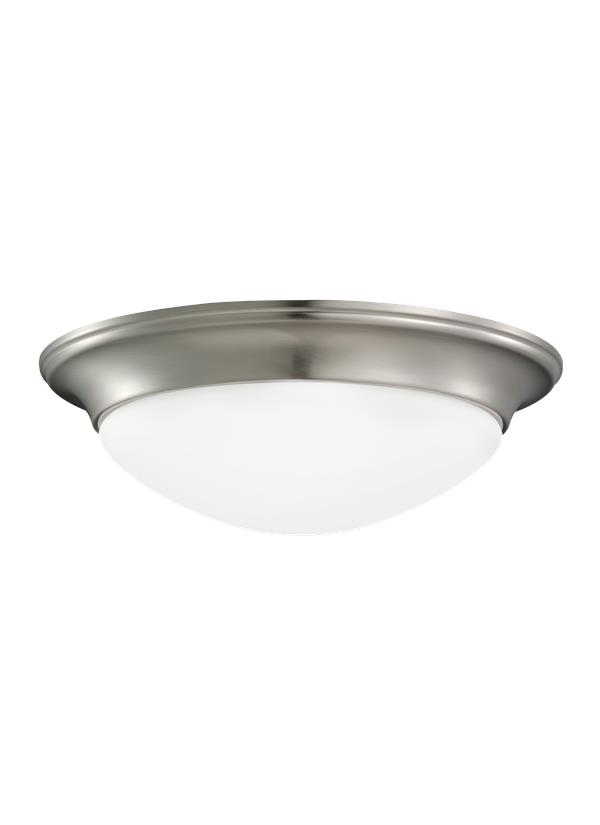

75435EN3-962: Two Light Ceiling Flush Mount


Collection:  Nash

Two Light LED Flush Fixture in Brushed Nickel Finish with Satin Etched Glass Shade

Featured in the decorative Nash collection

2 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Satin Etched glass diffuser

ENERGY STAR® Qualified

UPC #:785652046322

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 14''
Height: 4 1/2''
Weight: 3.7 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Sleek architectural look with exclusive 'twist-lock' design makes installation and relamping easy with no exposed screws
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (75434 75435 75436 75444 75445 75446)
Trilingual (English, Spanish, and French) (75435 75436 75434 75446)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1       3 7/8 10 7/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 75435EN3-962 1  785652046322  15.5 6.75 15.5 0.938 4.8 0 Yes
Master Pack 75435EN3-962 0  10785652046329
NJ Pallet   60    48 40 75 83.333 288 No
NV Pallet   66    48 40 75 83.333 382 No
