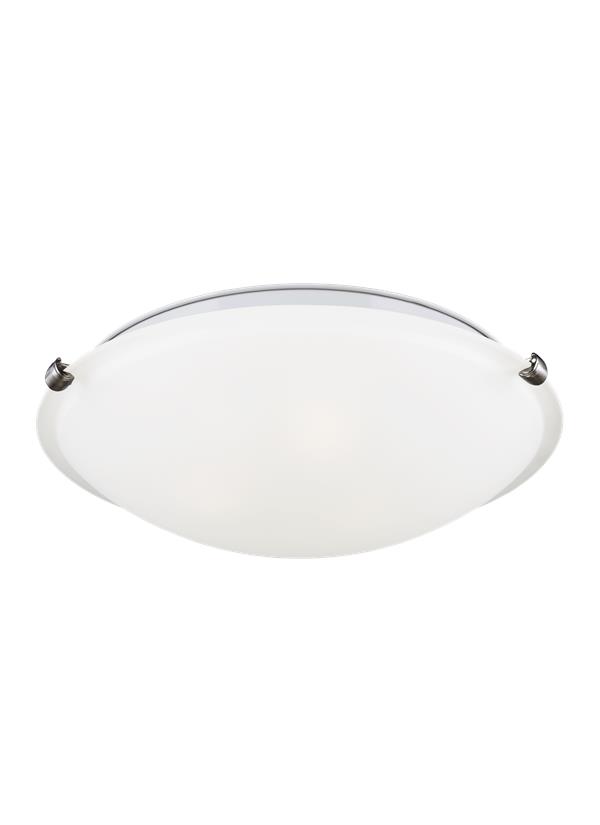

7543503EN3-962: Three Light Ceiling Flush Mount



Collection:  Clip Ceiling Flush Mount


Featured in the decorative Clip Ceiling Flush Mount collection

3 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Satin Etched glass diffuser

ENERGY STARĀ® Qualified

UPC #:785652051715

Finish:   Brushed Nickel (962)

Dimensions:

Diameter: 16 1/4''
Height: 4''
Weight: 4.5 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  3 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (754350 744359 764359)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Glass Satin Etched 1       3 1/16 15 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Mounting Plate 3/4      13 3/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7543503EN3-962 785652051715  18.75 18.75 8.25 1.678 6.5 0 Yes
Master Pack 7543503EN3-962 10785652051712
NJ Pallet   44    48 40 76 84.444 286 No
NV Pallet   48    48 40 76 84.444 321.6 No
