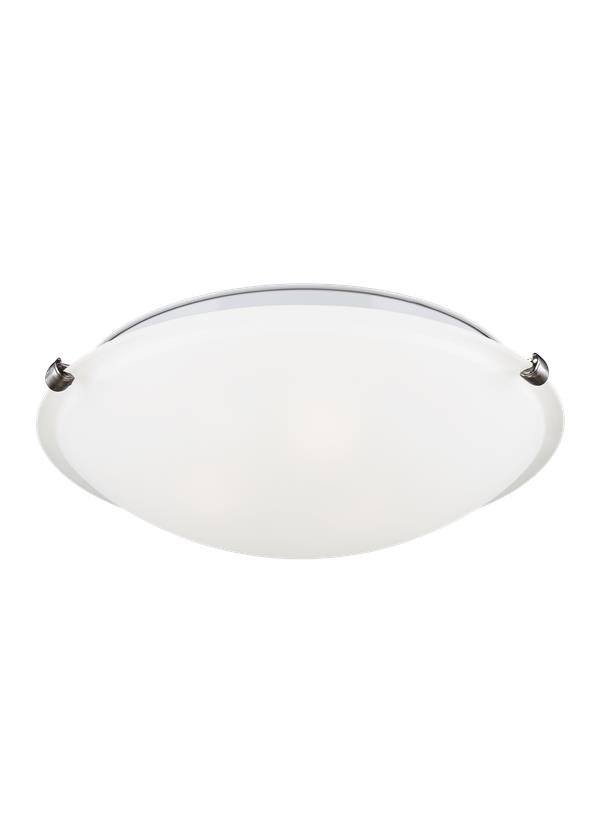

7543502EN3-962: Two Light Ceiling Flush Mount

	Collection: Clip Ceiling Flush Mount
	Featured in the decorative Clip Ceiling Flush Mount collection
	2 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Satin Etched glass diffuser
	ENERGY STAR® Qualified
	UPC #:785652051708
	Finish: Brushed Nickel (962)

Dimensions:


Diameter:	12 1/4''
Height:	4''

Weight:

2.7 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Key Slots

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

2 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - White

3 Bracket - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (754350 744359 764359)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Glass

Satin Etched

11 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Mounting Plate	3/4			9 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	7543502EN3-962	1	785652051708	14.3	14.1	7.5	0.875	4.1	0	Yes
Master Pack	7543502EN3-962	0	10785652051705
NJ Pallet		75		48	40	77	85.556	307.5		No
NV Pallet		75		48	40	77	85.556	300		No
