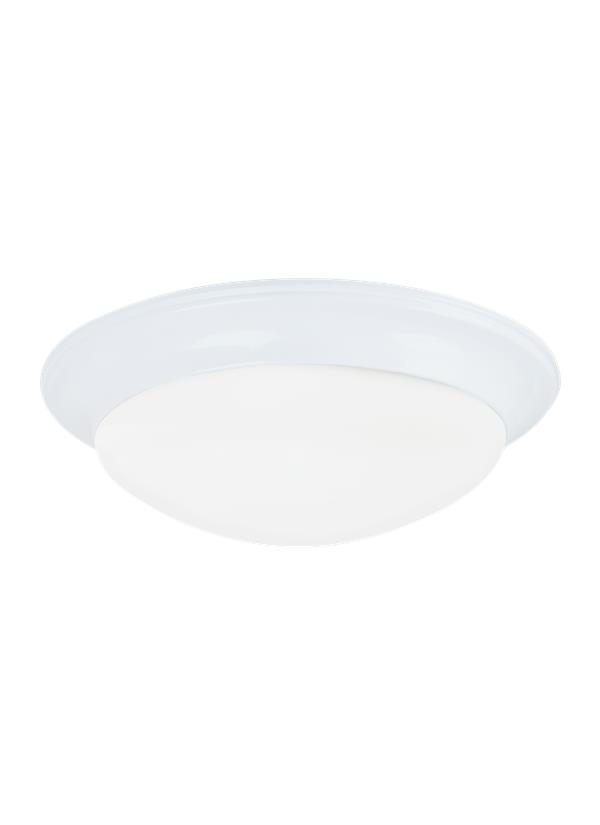

75434EN3-15: One Light Ceiling Flush Mount


Collection:  Nash

Three Light LED Flush Fixture in White Finish with Satin Etched Glass Shade

Featured in the decorative Nash collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

Satin Etched glass

ENERGY STAR® Qualified

UPC #:785652051678

Finish:   White (15)
Dimensions:

Diameter: 11 1/2''
Height: 4''
Weight: 2.9 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Sleek architectural look with exclusive 'twist-lock' design makes installation and relamping easy with no exposed screws
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (75435 75436 75434 75446)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1       3 1/4 9
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 75434EN3-15 1  785652051678  13.58 13.58 5.25 0.56 4 0 Yes
Master Pack 75434EN3-15 0  10785652051675
NJ Pallet   105    48 40 77 85.556 420 No
NV Pallet   114    48 40 71.75 79.722 504 No
