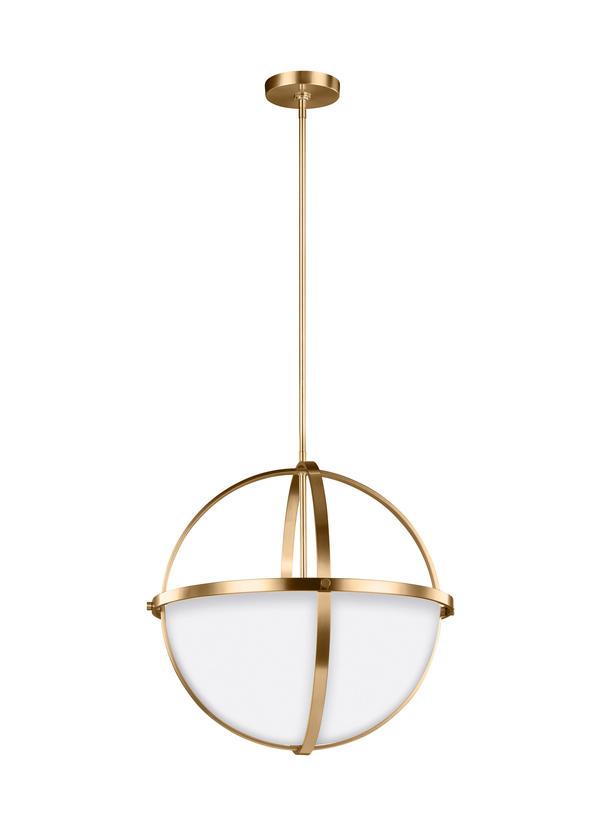

6624603EN3-848: Three Light Pendant


Collection:  Alturas

Supplied with pre-laced, adjustable 12-feet of wire for ease of installation and to save you time

Additional extension rods offer you the option for a customized look

Mounting hardware included for use on flat, slope, vaulted or cathedral ceilings

An ENERGY STAR® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

UPC #:785652051357

Finish:   Satin Brass (848)
Dimensions:

Diameter: 19''
Height: 18 3/4''
Weight: 12.7 lbs.
Overall Height: 63 1/4''
Wire: 144'' (color/Gold)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  3 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Undefined
1 6" Stem - Steel - Undefined
3 12" Stem - Steel - Undefined
1 Sloped Ceiling Hardware - Steel - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6624603-ALT)
Trilingual (English, Spanish, and French) (6624603)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560197-303     8 3/8 16 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5 1/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6624603EN3-848 1  785652051357  20.25 20 20 4.688 16.9 0 Yes
Master Pack 6624603EN3-848 0  10785652051354
NJ Pallet   22    48 40 77 85.556 371.8 No
NV Pallet   22    48 40 77 85.556 371.8 No
