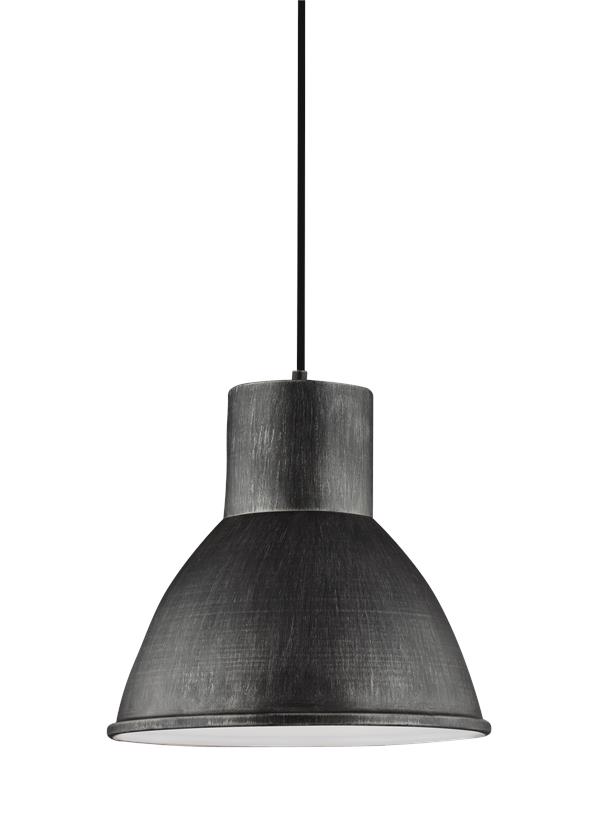

6517401EN3-846: One Light Pendant



Collection:  Division Street


Supplied with adjustable 12-feet of wire for preferred length

Additional extension rods included for a do-it-yourself project and customized look

Mounting hardware included for use on flat, slope, vaulted or cathedral ceilings

An ENERGY STARĀ® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

UPC #:785652045318

Finish:   Stardust (846)

Dimensions:

Diameter: 15''
Height: 14''
Weight: 4.4 lbs.
Overall Height: 160 19/32''
Wire: 144'' (color/Black)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Stardust
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6517401-DIV)
Trilingual (English, Spanish, and French) (6517401 6517491S)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Steel Stardust 1       8 3/8 15
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     4 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6517401BLE-846 785652045318  17.75 17.75 11.5 2.097 7.4 0 Yes
Master Pack 6517401EN3-846 10785652045315
NJ Pallet   36    48 40 70 77.778 266.4 No
NV Pallet   36    48 40 70 77.778 266.4 No
