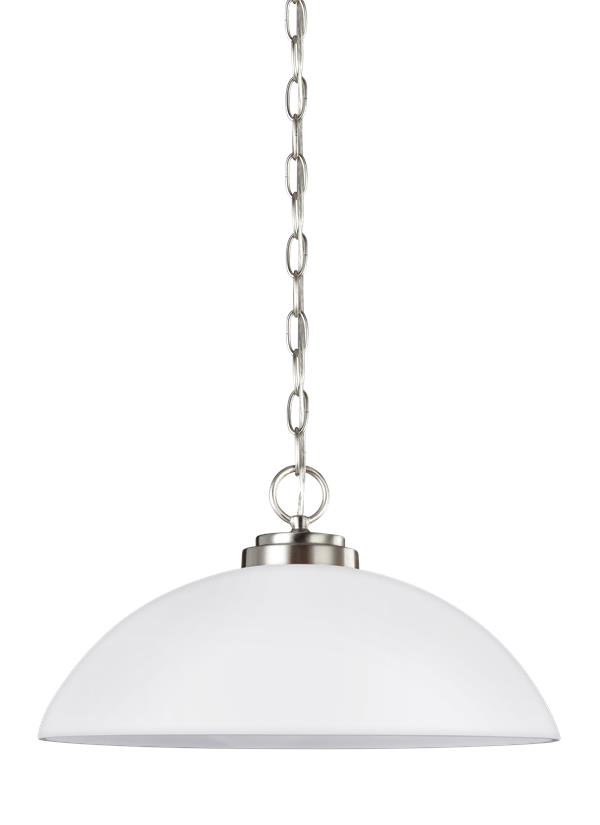

65160EN3-962: One Light Pendant



Collection:  Oslo

Featured in the decorative Oslo collection

1 A19 Medium 9.3 watt light bulb

Fixture is supplied with 1 light bulb

Etched / white inside glass shade

ENERGY STAR® Qualified

UPC #:785652050879

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 15 3/4''
Height: 8 3/4''
Weight: 6.6 lbs.
Overall Height: 131 1/4''
Wire: 144'' (color/Clear Silver)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Chain - Steel - Undefined
1 Body - Steel - Undefined
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (65160)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 1       5 3/8 15 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 13/16      5 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 65160EN3-962 1  785652050879  18 18 7.5 1.406 8.3 0 Yes
Master Pack 65160EN3-962 0  10785652050876
NJ Pallet   44    48 40 74 82.222 365.2 No
NV Pallet   44    48 40 74 82.222 365.2 No
