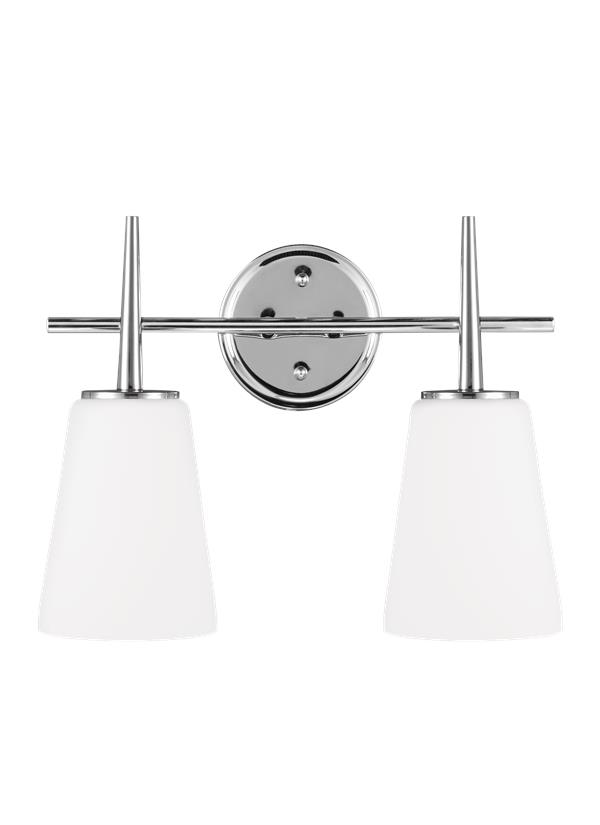

4440402EN3-05: Two Light Wall / Bath

	Collection: Driscoll
	Supplied with 6.5-inches of wire
	Fixture can be mounted in the up or down position for a customized look
	An ENERGY STAR® qualified lighting fixture uses LED bulbs to offer savings without sacrificing performance, features and comfort
	To achieve the most flattering mirror light, choose LED bulbs with a Color Rendering Index of 90, and a warm color maximum temperature of 3500K
	Install a dimmer switch for a warm glow effect and easily change the look and feel of the room
	UPC #:785652045370
	Finish: Chrome (05)

Dimensions:


Width:	15 1/2''
Height:	12''

Weight:

4.3 lbs.

Extends:

7''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

2 - LED Medium A19 9w Max. 120v - included

Features:

This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Chrome

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (4-4040)
Trilingual (English, Spanish, and French) (4140401 4440402 4440403 4440404)
Trilingual (English, Spanish, and French) (990W4_4040_-DRI)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Glass

Cased Opal Etched

G560111-607

6 1/2

5 1/16

3 11/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate			1	5	3 1/4	8 3/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4440402-05	1	785652045370	19	12	9.25	1.22	5.7	0	Yes
Master Pack	4440402EN3-05	0	10785652045377
NJ Pallet		60		48	40	71	78.889	342		No
NV Pallet		60		48	40	71	78.889	306		No
