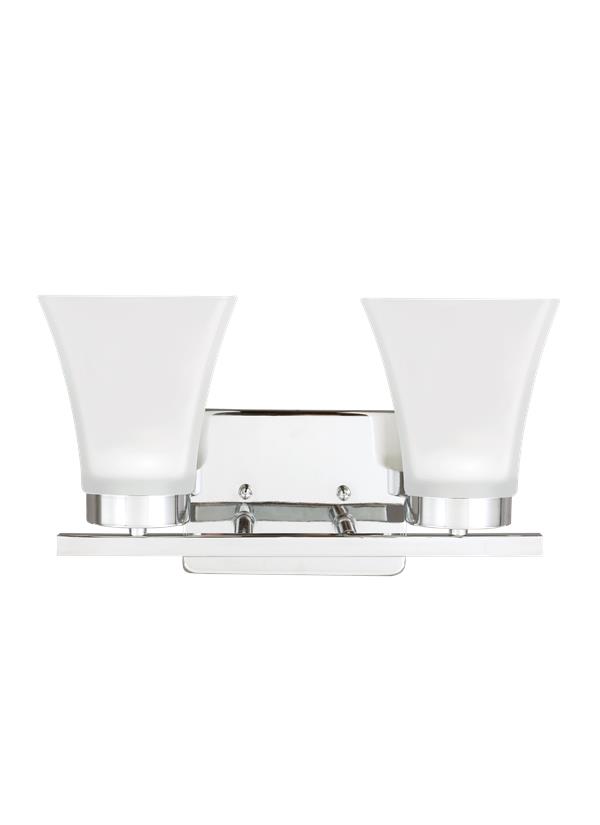

4411602EN3-05: Two Light Wall / Bath

	Collection: Bayfield
	Featured in the decorative Bayfield collection
	2 A19 Medium 9.3 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Satin Etched glass shades
	ENERGY STAR® Qualified
	UPC #:785652044564
	Finish: Chrome (05)

Dimensions:


Width:	13 1/4''
Height:	7 3/4''

Weight:

4.2 lbs.

Extends:

6 5/8''

Wire:

6'' (color/Black/White)

Mounting Proc.:

Wall / Bath

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

2 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Fixture may be mounted in the up or down position
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Undefined

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (4411602 4411603 4411604)
Trilingual (English, Spanish, and French) (990W441160_-BAY)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560150-619

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	4 5/8	6 1/4	3/4		5 1/2	2 1/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	4411602EN3-05	1	785652044564	16	9.75	9.13	0.824	5.4	0	Yes
Master Pack	4411602EN3-05	0	10785652044561
NJ Pallet		70		48	40	75	83.333	378		No
NV Pallet		70		48	40	73	81.111	392		No
